本来这一篇文章，早就应该写了，但是最近一直在研究项目的安全性，就一直耽搁了。研究了一段时间的安全性，收获颇丰，下一篇文章，将总结一下最近的收获。好了，先把Picasso捋一遍。

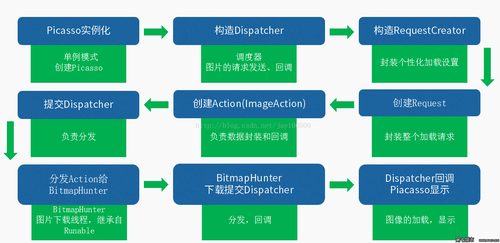

老规矩，先上流程图。这张图，从网上找来的。
Picasso的简单使用
build.gradle依赖
1 implementation 'com.squareup.picasso:picasso:2.71828'
加载图片
1 Picasso.get().load(url).into(imageView);
就一句代码，就实现了整个图片的加载。简单，明了。当然以前的版本是这样使用的 Picasso.with(this).load(url).into(imageView);
Picasso的源码解析
get()
我们先看看get()方法做了哪些操作
1 public static Picasso get() { 2 if (singleton == null) { 3 synchronized (Picasso.class) { 4 if (singleton == null) { 5 if (PicassoProvider.context == null) { 6 throw new IllegalStateException("context == null"); 7 } 8 singleton = new Builder(PicassoProvider.context).build(); 9 }10 }11 }12 return singleton;13 }
直接就通过一个双重判断形式的单例来获取到这个Picasso实例对象，我们看看singleton = new Builder(PicassoProvider.context).build();中的Builder做了什么。
1 /** Start building a new {@link Picasso} instance. */2 public Builder(@NonNull Context context) {3 if (context == null) {4 throw new IllegalArgumentException("Context must not be null.");5 }6 this.context = context.getApplicationContext();7 }
Building中所的操作不多，判断一下这个上下文环境，并且对上下文环境赋值为context.getApplicationContext();也就是说，Picasso的生命周期是和整个项目的生命周期是一致的，
当项目退出后，Picasso才会销毁。
build()
接着我们看看build()方法中做了哪些操作
1 /** Create the {@link Picasso} instance. */ 2 public Picasso build() { 3 Context context = this.context; 4 5 if (downloader == null) { 6 downloader = new OkHttp3Downloader(context); 7 } 8 if (cache == null) { 9 cache = new LruCache(context);10 }11 if (service == null) {12 service = new PicassoExecutorService();13 }14 if (transformer == null) {15 transformer = RequestTransformer.IDENTITY;16 }17 18 Stats stats = new Stats(cache);19 20 Dispatcher dispatcher = new Dispatcher(context, service, HANDLER, downloader, cache, stats);21 22 return new Picasso(context, dispatcher, cache, listener, transformer, requestHandlers, stats,23 defaultBitmapConfig, indicatorsEnabled, loggingEnabled);24 }25 }
build()方法中，主要是对这个下载器downloader，缓存cache，线程池PicassoExecutorService，事务分发器Dispatcher这几个对象的实例化。这几个对象，等会我们都会有介绍。
我们先看看Dispatcher这个事务分发器看看，先看看构造方法
1 Dispatcher(Context context, ExecutorService service, Handler mainThreadHandler, 2 Downloader downloader, Cache cache, Stats stats) { 3 this.dispatcherThread = new DispatcherThread(); 4 this.dispatcherThread.start(); 5 Utils.flushStackLocalLeaks(dispatcherThread.getLooper()); 6 this.context = context; 7 this.service = service; 8 this.hunterMap = new LinkedHashMap<>(); 9 this.failedActions = new WeakHashMap<>();10 this.pausedActions = new WeakHashMap<>();11 this.pausedTags = new LinkedHashSet<>();12 this.handler = new DispatcherHandler(dispatcherThread.getLooper(), this);13 this.downloader = downloader;14 this.mainThreadHandler = mainThreadHandler;15 this.cache = cache;16 this.stats = stats;17 this.batch = new ArrayList<>(4);18 this.airplaneMode = Utils.isAirplaneModeOn(this.context);19 this.scansNetworkChanges = hasPermission(context, Manifest.permission.ACCESS_NETWORK_STATE);20 this.receiver = new NetworkBroadcastReceiver(this);21 receiver.register();22 }
在构造方法中，除了将刚刚传入的下载器downloader，缓存cache，线程池PicassoExecutorService以外，还有几个比较重要的的一个是DispatcherHandler，NetworkBroadcastReceiver这两个对象
我们分别看看。
downloader下载器
1 if (downloader == null) {2 downloader = new OkHttp3Downloader(context);3 }4 5 6 7 public OkHttpClient build() {8 return new OkHttpClient(this);9 }
我看了Picasso以前的版本，以前的版本下载器中，它会通过反射来获取OKhttp，如果项目中有使用OKhttp，则下载器就是使用OKhttp，否则的话，它会使用内嵌的UrlConnectionDownloader
下载器。但是新的版本以后（具体哪个版本开始，我没有深究）直接就是使用OKhttp了。
LruCache 缓存
1 /** Create a cache with a given maximum size in bytes. */2 public LruCache(int maxByteCount) {3 cache = new android.util.LruCache<String, LruCache.BitmapAndSize>(maxByteCount) {4 @Override protected int sizeOf(String key, BitmapAndSize value) {5 return value.byteCount;6 }7 };8 }
这个缓存相当于给了一个具有给定最大字节大小的缓存。
PicassoExecutorService 线程池
1 class PicassoExecutorService extends ThreadPoolExecutor { 2 private static final int DEFAULT_THREAD_COUNT = 3; 3 4 PicassoExecutorService() { 5 super(DEFAULT_THREAD_COUNT, DEFAULT_THREAD_COUNT, 0, TimeUnit.MILLISECONDS, 6 new PriorityBlockingQueue<Runnable>(), new Utils.PicassoThreadFactory()); 7 } 8 9 void adjustThreadCount(NetworkInfo info) {10 if (info == null || !info.isConnectedOrConnecting()) {11 setThreadCount(DEFAULT_THREAD_COUNT);12 return;13 }14 switch (info.getType()) {15 case ConnectivityManager.TYPE_WIFI:16 case ConnectivityManager.TYPE_WIMAX:17 case ConnectivityManager.TYPE_ETHERNET:18 setThreadCount(4);19 break;20 case ConnectivityManager.TYPE_MOBILE:21 switch (info.getSubtype()) {22 case TelephonyManager.NETWORK_TYPE_LTE: // 4G23 case TelephonyManager.NETWORK_TYPE_HSPAP:24 case TelephonyManager.NETWORK_TYPE_EHRPD:25 setThreadCount(3);26 break;27 case TelephonyManager.NETWORK_TYPE_UMTS: // 3G28 case TelephonyManager.NETWORK_TYPE_CDMA:29 case TelephonyManager.NETWORK_TYPE_EVDO_0:30 case TelephonyManager.NETWORK_TYPE_EVDO_A:31 case TelephonyManager.NETWORK_TYPE_EVDO_B:32 setThreadCount(2);33 break;34 case TelephonyManager.NETWORK_TYPE_GPRS: // 2G35 case TelephonyManager.NETWORK_TYPE_EDGE:36 setThreadCount(1);37 break;38 default:39 setThreadCount(DEFAULT_THREAD_COUNT);40 }41 break;42 default:43 setThreadCount(DEFAULT_THREAD_COUNT);44 }45 }
这个线程池直接就继承ThreadPoolExecutor，默认的线程数是3个，而线程数的数量随着网络的变化而改变，WiFi的为4,4G的为3,3G的为2,2G的为1，其他情况都是使用默认的。
DispatcherHandler
1 private static class DispatcherHandler extends Handler { 2 private final Dispatcher dispatcher; 3 4 DispatcherHandler(Looper looper, Dispatcher dispatcher) { 5 super(looper); 6 this.dispatcher = dispatcher; 7 } 8 9 @Override public void handleMessage(final Message msg) {10 switch (msg.what) {11 case REQUEST_SUBMIT: {12 Action action = (Action) msg.obj;13 dispatcher.performSubmit(action);14 break;15 }16 case REQUEST_CANCEL: {17 Action action = (Action) msg.obj;18 dispatcher.performCancel(action);19 break;20 }21 case TAG_PAUSE: {22 Object tag = msg.obj;23 dispatcher.performPauseTag(tag);24 break;25 }26 case TAG_RESUME: {27 Object tag = msg.obj;28 dispatcher.performResumeTag(tag);29 break;30 }31 case HUNTER_COMPLETE: {32 BitmapHunter hunter = (BitmapHunter) msg.obj;33 dispatcher.performComplete(hunter);34 break;35 }36 case HUNTER_RETRY: {37 BitmapHunter hunter = (BitmapHunter) msg.obj;38 dispatcher.performRetry(hunter);39 break;40 }41 case HUNTER_DECODE_FAILED: {42 BitmapHunter hunter = (BitmapHunter) msg.obj;43 dispatcher.performError(hunter, false);44 break;45 }46 case HUNTER_DELAY_NEXT_BATCH: {47 dispatcher.performBatchComplete();48 break;49 }50 case NETWORK_STATE_CHANGE: {51 NetworkInfo info = (NetworkInfo) msg.obj;52 dispatcher.performNetworkStateChange(info);53 break;54 }55 case AIRPLANE_MODE_CHANGE: {56 dispatcher.performAirplaneModeChange(msg.arg1 == AIRPLANE_MODE_ON);57 break;58 }59 default:60 Picasso.HANDLER.post(new Runnable() {61 @Override public void run() {62 throw new AssertionError("Unknown handler message received: " + msg.what);63 }64 });65 }66 }67 }
这个DispatcherHandler直接Handler，并且是作用在dispatcherThread线程中的Handler，它用于把在dispatcherThread子线程的操作转到到Dispatcher中去，通过handleMessage()方法可以知道
如，请求取消，暂停，网络的变化，飞行模式的改变等等，都是通过Handler来切换处理的。
NetworkBroadcastReceiver
1 static class NetworkBroadcastReceiver extends BroadcastReceiver { 2 static final String EXTRA_AIRPLANE_STATE = "state"; 3 4 private final Dispatcher dispatcher; 5 6 NetworkBroadcastReceiver(Dispatcher dispatcher) { 7 this.dispatcher = dispatcher; 8 } 9 10 void register() {11 IntentFilter filter = new IntentFilter();12 filter.addAction(ACTION_AIRPLANE_MODE_CHANGED);13 if (dispatcher.scansNetworkChanges) {14 filter.addAction(CONNECTIVITY_ACTION);15 }16 dispatcher.context.registerReceiver(this, filter);17 }18 19 void unregister() {20 dispatcher.context.unregisterReceiver(this);21 }22 23 @SuppressLint("MissingPermission")24 @Override public void onReceive(Context context, Intent intent) {25 // On some versions of Android this may be called with a null Intent,26 // also without extras (getExtras() == null), in such case we use defaults.27 if (intent == null) {28 return;29 }30 final String action = intent.getAction();31 if (ACTION_AIRPLANE_MODE_CHANGED.equals(action)) {32 if (!intent.hasExtra(EXTRA_AIRPLANE_STATE)) {33 return; // No airplane state, ignore it. Should we query Utils.isAirplaneModeOn?34 }35 dispatcher.dispatchAirplaneModeChange(intent.getBooleanExtra(EXTRA_AIRPLANE_STATE, false));36 } else if (CONNECTIVITY_ACTION.equals(action)) {37 ConnectivityManager connectivityManager = getService(context, CONNECTIVITY_SERVICE);38 dispatcher.dispatchNetworkStateChange(connectivityManager.getActiveNetworkInfo());39 }40 }41 }
这是一个广播，他的主要作用就是监听网络的变化，一旦网络发生了变化，则通过广播来接收到，并且通知相应的操作，比如更改线程的数量。
以上就是get()的所做的一些操作。
load()
1 public RequestCreator load(@Nullable String path) { 2 if (path == null) { 3 return new RequestCreator(this, null, 0); 4 } 5 if (path.trim().length() == 0) { 6 throw new IllegalArgumentException("Path must not be empty."); 7 } 8 return load(Uri.parse(path)); 9 }10 11 RequestCreator(Picasso picasso, Uri uri, int resourceId) {12 if (picasso.shutdown) {13 throw new IllegalStateException(14 "Picasso instance already shut down. Cannot submit new requests.");15 }16 this.picasso = picasso;17 this.data = new Request.Builder(uri, resourceId, picasso.defaultBitmapConfig);18 }
load()中所做的操作不多，主要通过path，来获得一个请求构造器RequestCreator
into()
public void into(ImageView target, Callback callback) { long started = System.nanoTime();
checkMain(); //判断是否在主线程
if (target == null) { throw new IllegalArgumentException("Target must not be null.");
} if (!data.hasImage()) { //这里主要是判断uri是否为空，或者是resourceId是否为0，如果是的话，Picasso就会取消这个imageView的请求。并且将占位图显示 picasso.cancelRequest(target); if (setPlaceholder) {
setPlaceholder(target, getPlaceholderDrawable());
} return;
} if (deferred) { if (data.hasSize()) { //如果我们在代码中设置了fit()这个属性，也就是调整图像的大小，使其完全适合目标，但是又设置图片的宽高的话，就会抛异常了...
throw new IllegalStateException("Fit cannot be used with resize.");
} int width = target.getWidth(); int height = target.getHeight(); if (width == 0 || height == 0) { //如果我们设置的宽高中有一个为0的话，就会展示这个占位图
if (setPlaceholder) {
setPlaceholder(target, getPlaceholderDrawable());
}
picasso.defer(target, new DeferredRequestCreator(this, target, callback)); return;
}
data.resize(width, height);
}
Request request = createRequest(started);
String requestKey = createKey(request); if (shouldReadFromMemoryCache(memoryPolicy)) { //先判断缓存中是否有数据，如果缓存中有数据的话则直接从缓存中取出来
Bitmap bitmap = picasso.quickMemoryCacheCheck(requestKey); if (bitmap != null) {
picasso.cancelRequest(target);
setBitmap(target, picasso.context, bitmap, MEMORY, noFade, picasso.indicatorsEnabled); if (picasso.loggingEnabled) {
log(OWNER_MAIN, VERB_COMPLETED, request.plainId(), "from " + MEMORY);
} if (callback != null) {
callback.onSuccess();
} return;
}
} if (setPlaceholder) { //先展示占位图 setPlaceholder(target, getPlaceholderDrawable());
}
Action action = new ImageViewAction(picasso, target, request, memoryPolicy, networkPolicy, errorResId,
errorDrawable, requestKey, tag, callback, noFade);
picasso.enqueueAndSubmit(action); //将请求事件添加到队列中，然后通过handler将请求事件发送出去。
}
基本Picasso的基本流程就是这样的了，如果有哪些错误，麻烦请指出，一起学习，一起进步
原文出处：https://www.cnblogs.com/huangjialin/p/9626526.html
