使用

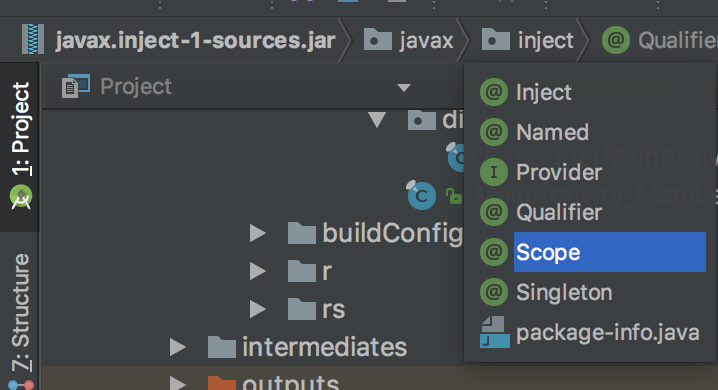

继续学习在代码中会看到的标注：@Named、@Qualifier、@Singleton、@Scope。这四个标注包括之前学的@Inject其实不是在dagger的包中，而是javax-inject包中：
经过上篇的学习，结合@Inject、@Component、@Module、@Provides的使用，先看一个例子：
City.java
public class City {private String name;public City() {}public String show() {return name;}public void setName(String name) {this.name = name;}} |
BeanModule.java
@Modulepublic class BeanModule {@ProvidesCity providerCityCD() {City city = new City();city.setName("成都");return city;}@ProvidesCity providerCityZG(){City city = new City();city.setName("自贡");return city;}} |
MainActivityComponent.java
@Component(modules = BeanModule.class)public interface MainActivityComponent {void inject(MainActivity activity);} |
MainActivity.java
public class MainActivity extends AppCompatActivity {public static String TAG = "hcy";@InjectCity city;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);//in Android Studio, select Build > Rebuild ProjectDaggerMainActivityComponent.create().inject(this);Log.d(TAG, "city name: " + city.show());}} |

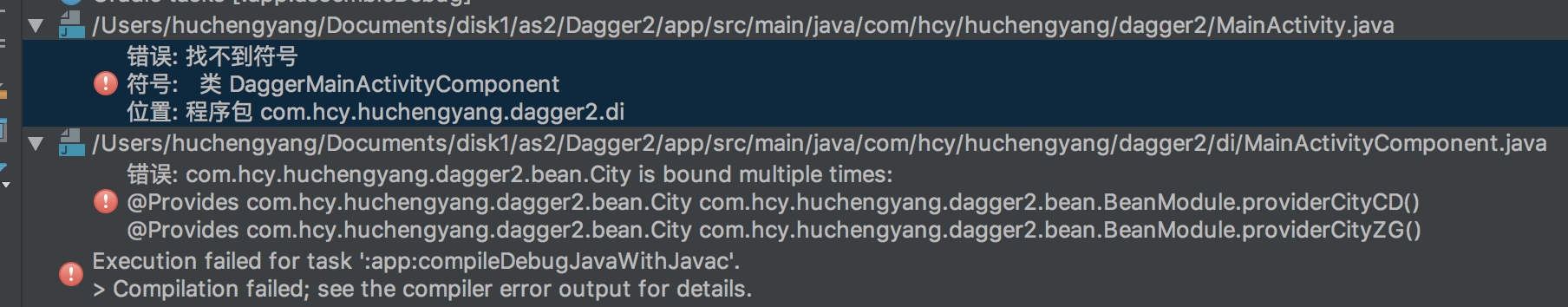

一跑起来就GG了

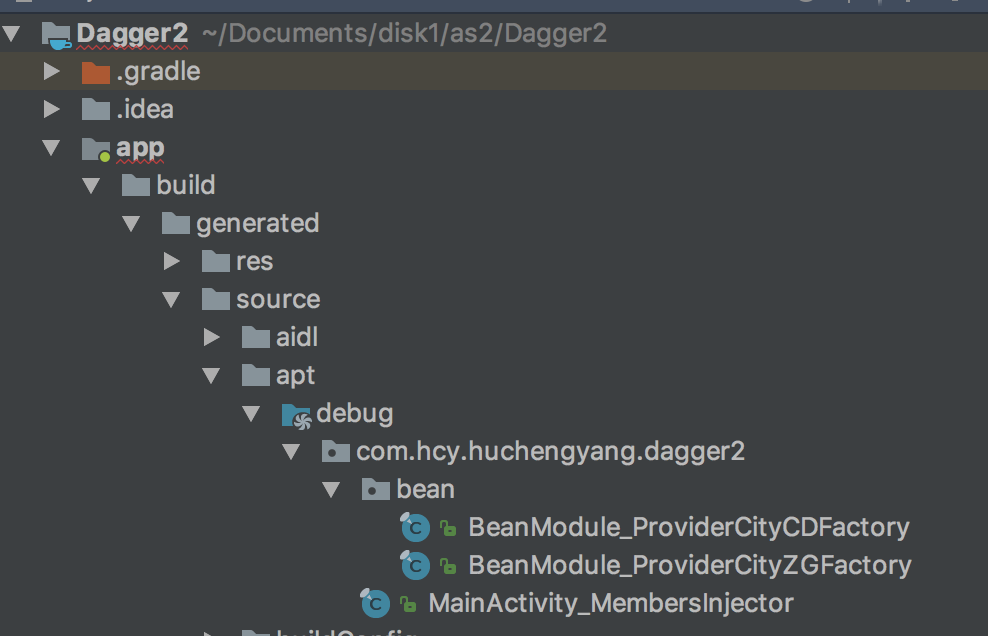

心路历程是这样的，MainActivity.java作为依赖需求方，编译生成MainActivity_MembersInjector，BeanModule.java作为依赖提供方，编译生成两个Xx_Factory，那么问题来了，有两个“备胎”供选择，你选谁？Component一脸懵逼，愣是搞不懂把哪两个”绑定”起来，直接罢工了，因此可以看到上篇中的DaggerMainActivityComponent在这里没有生成。
@Named
那么告诉Component我们要的是哪个不就行啦？可以使用@Named标注，改下BeanModule.java
@Modulepublic class BeanModule {@Named("CD")@ProvidesCity providerCityCD() {City city = new City();city.setName("成都");return city;}@Named("ZG")@ProvidesCity providerCityZG() {City city = new City();city.setName("自贡");return city;}} |
MainActivity.java
public class MainActivity extends AppCompatActivity {public static String TAG = "hcy";@Named("CD")@InjectCity city;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);//in Android Studio, select Build > Rebuild ProjectDaggerMainActivityComponent.create().inject(this);Log.d(TAG, "city name: " + city.show()); |

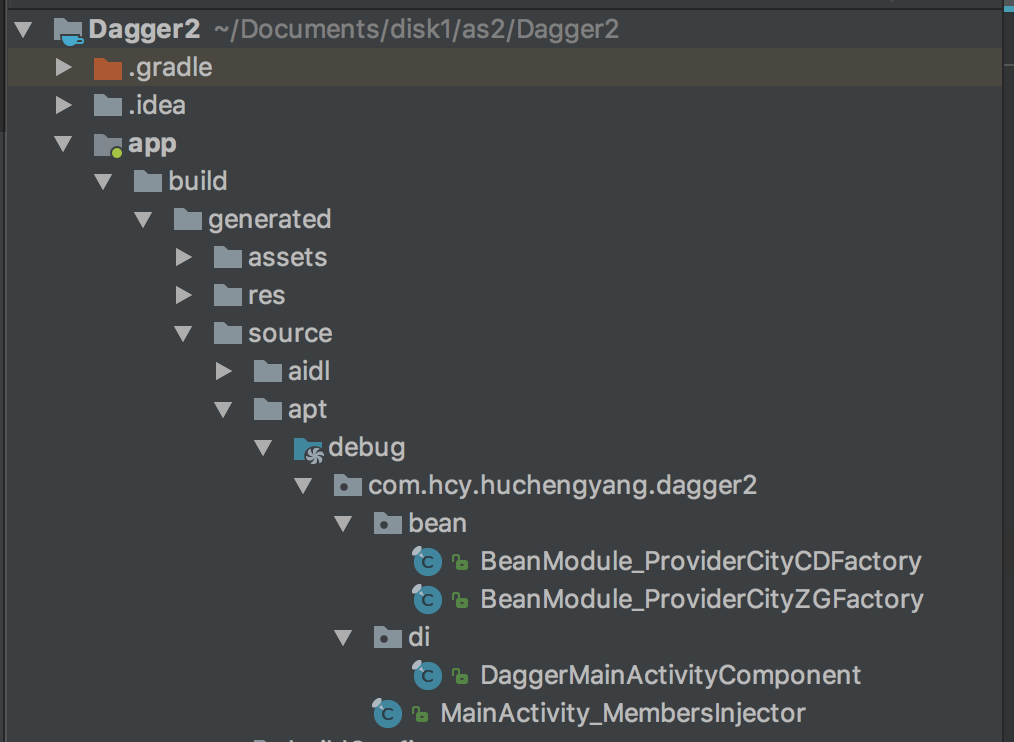

@Named(“参数”)和被引用的地方填的一致就可以了，编译运行就不会报错了。此时编译生成的文件：
熟悉的DaggerMainActivityComponent又回来了，而且两个依赖提供者也都在，通过打印我们知道选的是CD，那它是怎么实现的呢？看下DaggerMainActivityComponent的initialize()：
private void initialize(final Builder builder) {this.providerCityCDProvider = BeanModule_ProviderCityCDFactory.create(builder.beanModule);this.mainActivityMembersInjector = MainActivity_MembersInjector.create(providerCityCDProvider);} |
可以看到，依赖提供方和需求方通过@Named加了相同的标注CD后，在创建工厂的时候只会把CD这个提供方初始化，ZG根本没有露脸的机会，后面的流程就跟上篇一样了。
@Qualifier
使用@Qualifier可以实现@Named一样的功能，Qualifier翻译过来是修饰符的意思，先看下用法，再分析@Qualifier和@Named之间的“苟且”。添加一个接口CD.java和ZG.java
@Qualifier@Retention(RetentionPolicy.RUNTIME)public @interface CD {}@Qualifier@Retention(RetentionPolicy.RUNTIME)public @interface ZG {} |
修改BeanModule.java如下：
@Modulepublic class BeanModule {@CD@ProvidesCity providerCityCD() {City city = new City();city.setName("成都");return city;}@ZG@ProvidesCity providerCityZG() {City city = new City();city.setName("自贡");return city;}} |
MainActivity.java
public class MainActivity extends AppCompatActivity {public static String TAG = "hcy";@CD@InjectCity city;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);//in Android Studio, select Build > Rebuild ProjectDaggerMainActivityComponent.create().inject(this);Log.d(TAG, "city name: " + city.show());}} |
修改后和输出结果、编译生成的类以及源码都和@Named一毛一样。@Qualifier可以让我们自己创建限定符，其实@Named内部也是通过@Qualifier实现，源码如下：
/*** String-based {@linkplain Qualifier qualifier}.** <p>Example usage:** <pre>* public class Car {* @Inject <b>@Named("driver")</b> Seat driverSeat;* @Inject <b>@Named("passenger")</b> Seat passengerSeat;* ...* }</pre>*/@Qualifier@Documented@Retention(RUNTIME)public @interface Named {/** The name. */String value() default "";} |

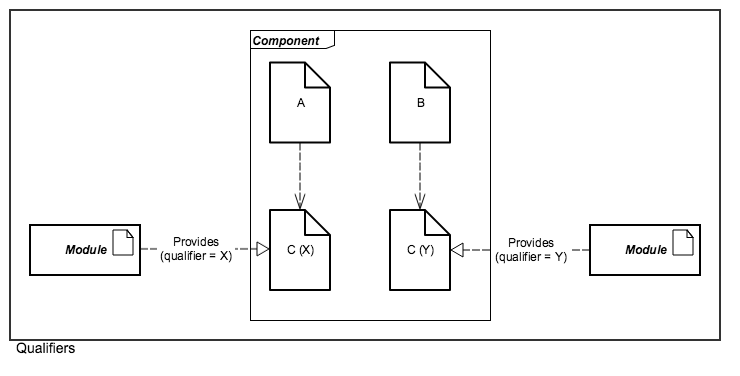

从注释可知@Named是@Qualifier的String型实现；看下github上一张介绍图：
顺便提一下这里的@Retention，翻译过来是保留的意思，它是用来指定我们自定义的限定符能保留的多久，有三种可选：
/*** Indicates how long annotations with the annotated type are to* be retained. If no Retention annotation is present on* an annotation type declaration, the retention policy defaults to* {@code RetentionPolicy.CLASS}.*/public enum RetentionPolicy {/*** Annotations are to be discarded by the compiler.*/SOURCE,/*** Annotations are to be recorded in the class file by the compiler* but need not be retained by the VM at run time. This is the default* behavior.*/CLASS,/*** Annotations are to be recorded in the class file by the compiler and* retained by the VM at run time, so they may be read reflectively.** @see java.lang.reflect.AnnotatedElement*/RUNTIME} |
@Singleton
@Singleton从名字就知道是单例，怎么用这个？先看一个例子：
City.java
public class City {public City() {}} |
BeanModule.java
@Modulepublic class BeanModule {@Named("CD")@ProvidesCity providerCityCD() {City city = new City();return city;}@Named("ZG")@ProvidesCity providerCityZG() {City city = new City();return city;}} |
MainActivityComponent.java
@Component(modules = BeanModule.class)public interface MainActivityComponent {void inject(MainActivity activity);} |
MainActivity.java
public class MainActivity extends AppCompatActivity {public static String TAG = "hcy";@Named("CD")@InjectCity cityCD1;@Named("CD")@InjectCity cityCD2;@Named("ZG")@InjectCity cityZG1;@Named("ZG")@InjectCity cityZG2;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);//in Android Studio, select Build > Rebuild ProjectDaggerMainActivityComponent.create().inject(this);Log.d(TAG, "cityCD1 is: " + cityCD1);Log.d(TAG, "cityCD2 is: " + cityCD2);Log.d(TAG, "cityZG1 is: " + cityZG1);Log.d(TAG, "cityZG2 is: " + cityZG2);}} |
例子很简单，打印city如下:
D/hcy (13129): cityCD1 is: com.hcy.huchengyang.dagger2.bean.City@35051924D/hcy (13129): cityCD2 is: com.hcy.huchengyang.dagger2.bean.City@36acdc8dD/hcy (13129): cityZG1 is: com.hcy.huchengyang.dagger2.bean.City@14db0e42D/hcy (13129): cityZG2 is: com.hcy.huchengyang.dagger2.bean.City@28a95e53 |
可以看到这里获取到的对应4个不同的city，按照上一篇的分析套路可以很快定位到原因，查看编译生成的MainActivity_MembersInjector.java中的injectMembers()方法
@Overridepublic void injectMembers(MainActivity instance) {if (instance == null) {throw new NullPointerException("Cannot inject members into a null reference");}instance.cityCD1 = cityCD1AndCityCD2Provider.get();instance.cityCD2 = cityCD1AndCityCD2Provider.get();instance.cityZG1 = cityZG1AndCityZG2Provider.get();instance.cityZG2 = cityZG1AndCityZG2Provider.get();} |
这里会调用目标工厂的get方法，最后调用到BeanModule的方法创建对象；如果要确保单例，@Singleton就可以派上用场了。
使用
1.在提供依赖的构造函数上加@Singleton
@Modulepublic class BeanModule {@Named("CD")@Provides@SingletonCity providerCityCD() {City city = new City();return city;}@Named("ZG")@ProvidesCity providerCityZG() {City city = new City();return city;}} |
2.@Component标注的接口加上@Singleton
@Singleton@Component(modules = BeanModule.class)public interface MainActivityComponent {void inject(MainActivity activity);} |
修改后打印：
D/hcy (13519): cityCD1 is: com.hcy.huchengyang.dagger2.bean.City@35051924D/hcy (13519): cityCD2 is: com.hcy.huchengyang.dagger2.bean.City@35051924D/hcy (13519): cityZG1 is: com.hcy.huchengyang.dagger2.bean.City@36acdc8dD/hcy (13519): cityZG2 is: com.hcy.huchengyang.dagger2.bean.City@14db0e42 |
那么它是怎么保证单例的呢？查看源码会发现MainActivity_MembersInjector.java中的injectMembers()方法和之前是一样的，但是DaggerMainActivityComponent.java的initialize()方法发生了改变：
private void initialize(final Builder builder) {this.providerCityCDProvider =DoubleCheck.provider(BeanModule_ProviderCityCDFactory.create(builder.beanModule));this.providerCityZGProvider = BeanModule_ProviderCityZGFactory.create(builder.beanModule);this.mainActivityMembersInjector =MainActivity_MembersInjector.create(providerCityCDProvider, providerCityZGProvider);} |
这里多了DoubleCheck的操作。看下DoubleCheck.java
public final class DoubleCheck<T> implements Provider<T>, Lazy<T> {private static final Object UNINITIALIZED = new Object();private volatile Provider<T> provider;private volatile Object instance = UNINITIALIZED;private DoubleCheck(Provider<T> provider) {assert provider != null;this.provider = provider;}@Overridepublic T get() {Object result = instance;if (result == UNINITIALIZED) {//第一次取值后下次再来判断不满足直接返回之前的实例synchronized (this) {result = instance;if (result == UNINITIALIZED) {result = provider.get();Object currentInstance = instance;if (currentInstance != UNINITIALIZED && currentInstance != result) {throw new IllegalStateException();}instance = result;provider = null;}}}return (T) result;}public static <T> Provider<T> provider(Provider<T> delegate) {checkNotNull(delegate);if (delegate instanceof DoubleCheck) {return delegate;}return new DoubleCheck<T>(delegate);}} |

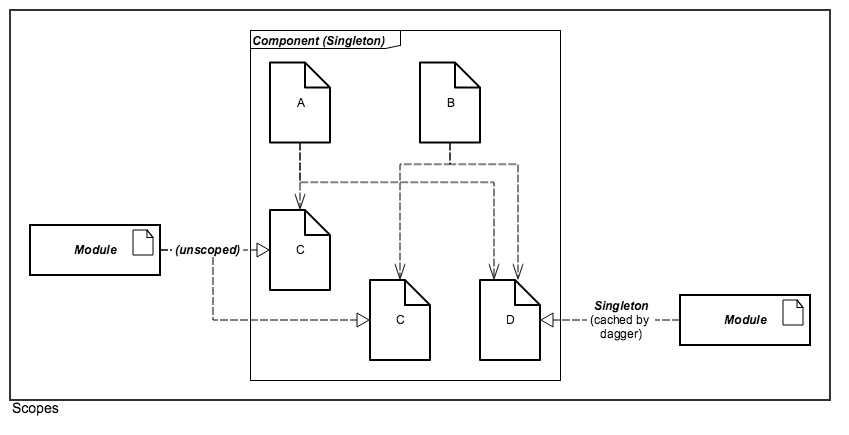

整个类都没多少代码，省略了注释和异常以及部分代码，DoubleCheck和我们的Factory都实现了共有接口Provider，保证单例的操作就是这里的get()方法，注释已解释，可以跟着流程走一波。这里看下github上的一张图，下图左边的对应没有标注@Singleton，每次取时都会重新new；右边有标注的在第一次创建时会缓存一份，下次再获取直接就返回缓存的。
@Scope
使用@Scope可以实现@Singleton一样的功能，Scope翻译过来是作用域的意思，其实@Singleton就是@Scope的实现(有点像上面@Named和@Qualifier的关系)，源码如下：
@Scope@Documented@Retention(RUNTIME)public @interface Singleton {} |
我们可以完全可以自己定义一个接口如：MainActivityScope.java
修改MainActivityComponent.java
@MainActivityScope@Component(modules = BeanModule.class)public interface MainActivityComponent {void inject(MainActivity activity);} |
修改BeanModule.java
@Modulepublic class BeanModule {@Named("CD")@Provides@MainActivityScopeCity providerCityCD() {City city = new City();return city;}@Named("ZG")@ProvidesCity providerCityZG() {City city = new City();return city;}} |
效果是一样的，@Scope是成对使用的，在@Module的@Provides方法上使用@Scope标注，那么对应的@Component也需要@Scope标准，此时@Provides方法提供的依赖在@Component中为单例。
