概要
基于上文讲解的spring cloud 授权服务的搭建，本文扩展了spring security 的登陆方式，增加手机验证码登陆、二维码登陆。 主要实现方式为使用自定义filter、 AuthenticationProvider、 AbstractAuthenticationToken 根据不同登陆方式分别处理。 本文相应代码在Github上已更新。
GitHub 地址：https://github.com/fp2952/spring-cloud-base/tree/master/auth-center/auth-center-provider

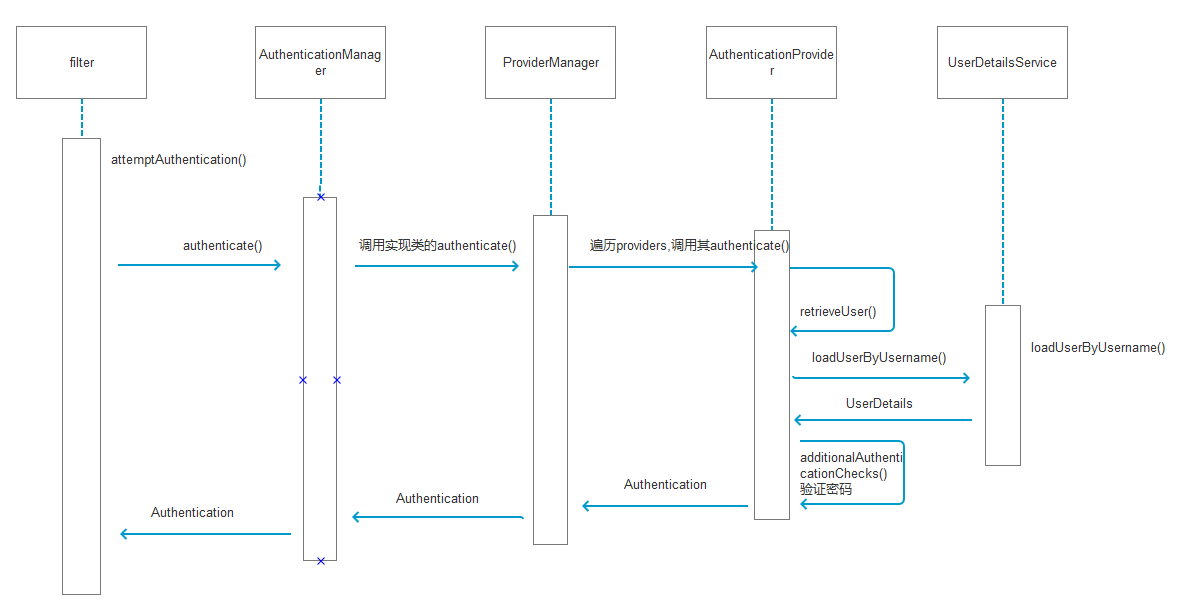

srping security 登陆流程
关于二维码登陆
二维码扫码登陆前提是已在微信端登陆，流程如下：
用户点击二维码登陆，调用后台接口生成二维码(带参数key), 返回二维码链接、key到页面
页面显示二维码，提示扫码，并通过此key建立websocket
用户扫码，获取参数key，点击登陆调用后台并传递key
后台根据微信端用户登陆状态拿到userdetail, 并在缓存（redis）中维护 key: userDetail 关联关系
后台根据websocket: key通知对于前台页面登陆
页面用此key登陆
最后一步用户通过key登陆就是本文的二维码扫码登陆部分，实际过程中注意二维码超时，redis超时等处理
自定义LoginFilter
自定义过滤器，实现AbstractAuthenticationProcessingFilter，在attemptAuthentication方法中根据不同登陆类型获取对于参数、 并生成自定义的 MyAuthenticationToken。
@Override public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException, IOException, ServletException { if (postOnly && !request.getMethod().equals("POST")) { throw new AuthenticationServiceException( "Authentication method not supported: " + request.getMethod());
} // 登陆类型：user:用户密码登陆；phone:手机验证码登陆；qr:二维码扫码登陆
String type = obtainParameter(request, "type"); String mobile = obtainParameter(request, "mobile");
MyAuthenticationToken authRequest; String principal; String credentials; // 手机验证码登陆
if("phone".equals(type)){
principal = obtainParameter(request, "phone");
credentials = obtainParameter(request, "verifyCode");
} // 二维码扫码登陆
else if("qr".equals(type)){
principal = obtainParameter(request, "qrCode");
credentials = null;
} // 账号密码登陆
else {
principal = obtainParameter(request, "username");
credentials = obtainParameter(request, "password"); if(type == null) type = "user";
} if (principal == null) {
principal = "";
} if (credentials == null) {
credentials = "";
}
principal = principal.trim();
authRequest = new MyAuthenticationToken(
principal, credentials, type, mobile); // Allow subclasses to set the "details" property
setDetails(request, authRequest); return this.getAuthenticationManager().authenticate(authRequest);
} private void setDetails(HttpServletRequest request,
AbstractAuthenticationToken authRequest) {
authRequest.setDetails(authenticationDetailsSource.buildDetails(request));
} private String obtainParameter(HttpServletRequest request, String parameter) { return request.getParameter(parameter);
}自定义 AbstractAuthenticationToken
继承 AbstractAuthenticationToken，添加属性 type，用于后续判断。
public class MyAuthenticationToken extends AbstractAuthenticationToken { private static final long serialVersionUID = 110L; private final Object principal; private Object credentials; private String type; private String mobile; /**
* This constructor can be safely used by any code that wishes to create a
* <code>UsernamePasswordAuthenticationToken</code>, as the {@link
* #isAuthenticated()} will return <code>false</code>.
*
*/
public MyAuthenticationToken(Object principal, Object credentials,String type, String mobile) { super(null); this.principal = principal; this.credentials = credentials; this.type = type; this.mobile = mobile; this.setAuthenticated(false);
} /**
* This constructor should only be used by <code>AuthenticationManager</code> or <code>AuthenticationProvider</code>
* implementations that are satisfied with producing a trusted (i.e. {@link #isAuthenticated()} = <code>true</code>)
* token token.
*
* @param principal
* @param credentials
* @param authorities
*/
public MyAuthenticationToken(Object principal, Object credentials,String type, String mobile, Collection<? extends GrantedAuthority> authorities) { super(authorities); this.principal = principal; this.credentials = credentials; this.type = type; this.mobile = mobile; super.setAuthenticated(true);
} @Override
public Object getCredentials() { return this.credentials;
} @Override
public Object getPrincipal() { return this.principal;
}
public String getType() { return this.type;
}
public String getMobile() { return this.mobile;
}
public void setAuthenticated(boolean isAuthenticated) throws IllegalArgumentException { if(isAuthenticated) { throw new IllegalArgumentException("Cannot set this token to trusted - use constructor which takes a GrantedAuthority list instead");
} else { super.setAuthenticated(false);
}
}
public void eraseCredentials() { super.eraseCredentials(); this.credentials = null;
}
}自定义 AuthenticationProvider
实现 AuthenticationProvider
代码与 AbstractUserDetailsAuthenticationProvider 基本一致，只需修改 authenticate 方法 及 createSuccessAuthentication 方法中的 UsernamePasswordAuthenticationToken 为我们的 token, 改为：
public Authentication authenticate(Authentication authentication) throws AuthenticationException { // 此处修改断言自定义的 MyAuthenticationToken
Assert.isInstanceOf(MyAuthenticationToken.class, authentication, this.messages.getMessage("MyAbstractUserDetailsAuthenticationProvider.onlySupports", "Only MyAuthenticationToken is supported")); // ...
} protected Authentication createSuccessAuthentication(Object principal, Authentication authentication, UserDetails user) {
MyAuthenticationToken result = new MyAuthenticationToken(principal, authentication.getCredentials(),((MyAuthenticationToken) authentication).getType(),((MyAuthenticationToken) authentication).getMobile(), this.authoritiesMapper.mapAuthorities(user.getAuthorities()));
result.setDetails(authentication.getDetails()); return result;
}继承provider
继承我们自定义的AuthenticationProvider，编写验证方法additionalAuthenticationChecks及 retrieveUser
/**
* 自定义验证
* @param userDetails
* @param authentication
* @throws AuthenticationException
*/
protected void additionalAuthenticationChecks(UserDetails userDetails, MyAuthenticationToken authentication) throws AuthenticationException {
Object salt = null; if(this.saltSource != null) {
salt = this.saltSource.getSalt(userDetails);
} if(authentication.getCredentials() == null) { this.logger.debug("Authentication failed: no credentials provided"); throw new BadCredentialsException(this.messages.getMessage("MyAbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
} else {
String presentedPassword = authentication.getCredentials().toString(); // 验证开始
if("phone".equals(authentication.getType())){ // 手机验证码验证，调用公共服务查询后台验证码缓存： key 为authentication.getPrincipal()的value， 并判断其与验证码是否匹配,
此处写死为 1000
if(!"1000".equals(presentedPassword)){ this.logger.debug("Authentication failed: verifyCode does not match stored value"); throw new BadCredentialsException(this.messages.getMessage("MyAbstractUserDetailsAuthenticationProvider.badCredentials", "Bad verifyCode"));
}
}else if(MyLoginAuthenticationFilter.SPRING_SECURITY_RESTFUL_TYPE_QR.equals(authentication.getType())){ // 二维码只需要根据 qrCode 查询到用户即可，所以此处无需验证
} else { // 用户名密码验证
if(!this.passwordEncoder.isPasswordValid(userDetails.getPassword(), presentedPassword, salt)) { this.logger.debug("Authentication failed: password does not match stored value"); throw new BadCredentialsException(this.messages.getMessage("MyAbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
}
}
}
} protected final UserDetails retrieveUser(String username, MyAuthenticationToken authentication) throws AuthenticationException {
UserDetails loadedUser; try { // 调用loadUserByUsername时加入type前缀
loadedUser = this.getUserDetailsService().loadUserByUsername(authentication.getType() + ":" + username);
} catch (UsernameNotFoundException var6) { if(authentication.getCredentials() != null) {
String presentedPassword = authentication.getCredentials().toString(); this.passwordEncoder.isPasswordValid(this.userNotFoundEncodedPassword, presentedPassword, (Object)null);
} throw var6;
} catch (Exception var7) { throw new InternalAuthenticationServiceException(var7.getMessage(), var7);
} if(loadedUser == null) { throw new InternalAuthenticationServiceException("UserDetailsService returned null, which is an interface contract violation");
} else { return loadedUser;
}
}自定义 UserDetailsService
查询用户时根据类型采用不同方式查询： 账号密码根据用户名查询用户； 验证码根据 phone查询用户， 二维码可调用公共服务
@Override public UserDetails loadUserByUsername(String var1) throws UsernameNotFoundException {
BaseUser baseUser;
String[] parameter = var1.split(":"); // 手机验证码调用FeignClient根据电话号码查询用户
if("phone".equals(parameter[0])){
ResponseData<BaseUser> baseUserResponseData = baseUserService.getUserByPhone(parameter[1]); if(baseUserResponseData.getData() == null || !ResponseCode.SUCCESS.getCode().equals(baseUserResponseData.getCode())){
logger.error("找不到该用户，手机号码：" + parameter[1]); throw new UsernameNotFoundException("找不到该用户，手机号码：" + parameter[1]);
}
baseUser = baseUserResponseData.getData();
} else if("qr".equals(parameter[0])){ // 扫码登陆根据key从redis查询用户
baseUser = null;
} else { // 账号密码登陆调用FeignClient根据用户名查询用户
ResponseData<BaseUser> baseUserResponseData = baseUserService.getUserByUserName(parameter[1]); if(baseUserResponseData.getData() == null || !ResponseCode.SUCCESS.getCode().equals(baseUserResponseData.getCode())){
logger.error("找不到该用户，用户名：" + parameter[1]); throw new UsernameNotFoundException("找不到该用户，用户名：" + parameter[1]);
}
baseUser = baseUserResponseData.getData();
} // 调用FeignClient查询角色
ResponseData<List<BaseRole>> baseRoleListResponseData = baseRoleService.getRoleByUserId(baseUser.getId()); List<BaseRole> roles; if(baseRoleListResponseData.getData() == null || !ResponseCode.SUCCESS.getCode().equals(baseRoleListResponseData.getCode())){
logger.error("查询角色失败！");
roles = new ArrayList<>();
}else {
roles = baseRoleListResponseData.getData();
} //调用FeignClient查询菜单
ResponseData<List<BaseModuleResources>> baseModuleResourceListResponseData = baseModuleResourceService.getMenusByUserId(baseUser.getId()); // 获取用户权限列表
List<GrantedAuthority> authorities = convertToAuthorities(baseUser, roles); // 存储菜单到redis
if( ResponseCode.SUCCESS.getCode().equals(baseModuleResourceListResponseData.getCode()) && baseModuleResourceListResponseData.getData() != null){
resourcesTemplate.delete(baseUser.getId() + "-menu");
baseModuleResourceListResponseData.getData().forEach(e -> {
resourcesTemplate.opsForList().leftPush(baseUser.getId() + "-menu", e);
});
} // 返回带有用户权限信息的User
org.springframework.security.core.userdetails.User user = new org.springframework.security.core.userdetails.User(baseUser.getUserName(),
baseUser.getPassword(), isActive(baseUser.getActive()), true, true, true, authorities); return new BaseUserDetail(baseUser, user);
}配置WebSecurityConfigurerAdapter
将我们自定义的类配置到spring security 登陆流程中
@Configuration@Order(ManagementServerProperties.ACCESS_OVERRIDE_ORDER)public class WebSecurityConfig extends WebSecurityConfigurerAdapter { // 自动注入UserDetailsService
@Autowired
private BaseUserDetailService baseUserDetailService; @Override
public void configure(HttpSecurity http) throws Exception {
http // 自定义过滤器
.addFilterAt(getMyLoginAuthenticationFilter(), UsernamePasswordAuthenticationFilter.class) // 配置登陆页/login并允许访问
.formLogin().loginPage("/login").permitAll() // 登出页
.and().logout().logoutUrl("/logout").logoutSuccessUrl("/backReferer") // 其余所有请求全部需要鉴权认证
.and().authorizeRequests().anyRequest().authenticated() // 由于使用的是JWT，我们这里不需要csrf
.and().csrf().disable();
} /**
* 用户验证
* @param auth
*/
@Override
public void configure(AuthenticationManagerBuilder auth) {
auth.authenticationProvider(myAuthenticationProvider());
} /**
* 自定义密码验证
* @return
*/
@Bean
public MyAuthenticationProvider myAuthenticationProvider(){
MyAuthenticationProvider provider = new MyAuthenticationProvider(); // 设置userDetailsService
provider.setUserDetailsService(baseUserDetailService); // 禁止隐藏用户未找到异常
provider.setHideUserNotFoundExceptions(false); // 使用BCrypt进行密码的hash
provider.setPasswordEncoder(new BCryptPasswordEncoder(6)); return provider;
} /**
* 自定义登陆过滤器
* @return
*/
@Bean
public MyLoginAuthenticationFilter getMyLoginAuthenticationFilter() {
MyLoginAuthenticationFilter filter = new MyLoginAuthenticationFilter(); try {
filter.setAuthenticationManager(this.authenticationManagerBean());
} catch (Exception e) {
e.printStackTrace();
}
filter.setAuthenticationSuccessHandler(new MyLoginAuthSuccessHandler());
filter.setAuthenticationFailureHandler(new SimpleUrlAuthenticationFailureHandler("/login?error")); return filter;
}
}
