给Word文档设置背景时，通常只能针对整篇文档设置统一的背景，如果需要对某些页面单独设置背景，则需要通过另外的方式来实现。本文通过C# 程序代码演示如何来实现。并附VB.NET代码作参考。
思路：通过在页眉中添加形状或者图片，并将形状或图片平铺（即设置形状或图片大小为页面大小）到整个页面。添加背景时，通过添加形状并设置形状颜色来设置成纯色背景效果；通过添加图片来实现图片背景效果。
本次程序运行环境中包括：引入Spire.Doc.dll；.Net Framework 4.5.1
设置不同背景时，分以下2种情况：
1. 只需设置首页背景和其他页面不同

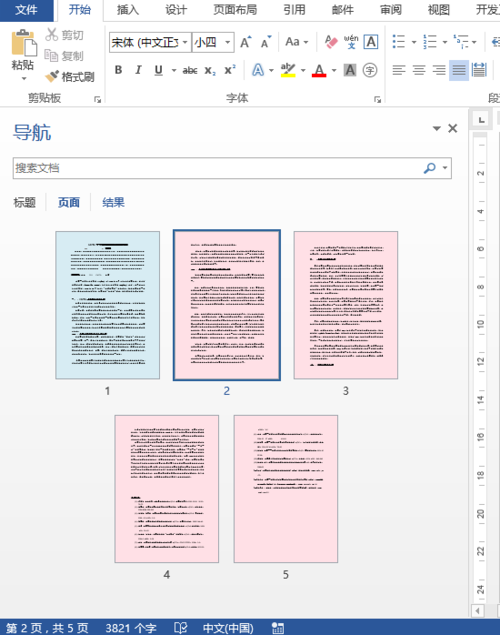

1.1 设置纯色背景
【C#】
using Spire.Doc;
using Spire.Doc.Documents;
using Spire.Doc.Fields;
using System.Drawing;
namespace DifferentBackground1
{
class Program
{
static void Main(string[] args)
{
//加载Word测试文档
Document doc = new Document();
doc.LoadFromFile("测试.docx");
//获取第一节
Section section = doc.Sections[0];
//设置首页页眉页脚不同
section.PageSetup.DifferentFirstPageHeaderFooter = true;
//在首页页眉添加形状
HeaderFooter firstpageheader = section.HeadersFooters.FirstPageFooter;//获取首页页眉
firstpageheader.Paragraphs.Clear();//清除页眉默认的段落格式（因默认页眉格式中包含有一条横线）
Paragraph firstpara = firstpageheader.AddParagraph();//重新添加段落
float width = section.PageSetup.PageSize.Width;//获取页面宽度、高度
float height = section.PageSetup.PageSize.Height;
ShapeObject shape = firstpara.AppendShape(width, height, ShapeType.Rectangle);//添加形状
shape.BehindText = true;//设置形状衬于文字下方
shape.HorizontalAlignment = ShapeHorizontalAlignment.Center;//设置对齐方式，铺满页面
shape.VerticalOrigin = VerticalOrigin.TopMarginArea;
shape.FillColor = Color.LightBlue;//形状颜色
//在其他页面的页眉中添加形状
HeaderFooter otherheader = section.HeadersFooters.Header;
otherheader.Paragraphs.Clear();
Paragraph otherpara = otherheader.AddParagraph();
ShapeObject shape1 = otherpara.AppendShape(width, height, ShapeType.Rectangle);
shape1.BehindText = true;
shape1.HorizontalAlignment = ShapeHorizontalAlignment.Center;
shape1.VerticalOrigin = VerticalOrigin.TopMarginArea;
shape1.FillColor = Color.Pink;
//保存文档
doc.SaveToFile("ColorBackground1.docx", FileFormat.Docx2013);
System.Diagnostics.Process.Start("ColorBackground1.docx");
}
}
}
【VB.NET】
Imports Spire.Doc
Imports Spire.Doc.Documents
Imports Spire.Doc.Fields
Imports System.Drawing
Namespace DifferentBackground1
Class Program
Private Shared Sub Main(args As String())
'加载Word测试文档
Dim doc As New Document()
doc.LoadFromFile("测试.docx")
'获取第一节
Dim section As Section = doc.Sections(0)
'设置首页页眉页脚不同
section.PageSetup.DifferentFirstPageHeaderFooter = True
'在首页页眉添加形状
Dim firstpageheader As HeaderFooter = section.HeadersFooters.FirstPageFooter
'获取首页页眉
firstpageheader.Paragraphs.Clear()
'清除页眉默认的段落格式（因默认页眉格式中包含有一条横线）
Dim firstpara As Paragraph = firstpageheader.AddParagraph()
'重新添加段落
Dim width As Single = section.PageSetup.PageSize.Width
'获取页面宽度、高度
Dim height As Single = section.PageSetup.PageSize.Height
Dim shape As ShapeObject = firstpara.AppendShape(width, height, ShapeType.Rectangle)
'添加形状
shape.BehindText = True
'设置形状衬于文字下方
shape.HorizontalAlignment = ShapeHorizontalAlignment.Center
'设置对齐方式，铺满页面
shape.VerticalOrigin = VerticalOrigin.TopMarginArea
shape.FillColor = Color.LightBlue
'形状颜色
'在其他页面的页眉中添加形状
Dim otherheader As HeaderFooter = section.HeadersFooters.Header
otherheader.Paragraphs.Clear()
Dim otherpara As Paragraph = otherheader.AddParagraph()
Dim shape1 As ShapeObject = otherpara.AppendShape(width, height, ShapeType.Rectangle)
shape1.BehindText = True
shape1.HorizontalAlignment = ShapeHorizontalAlignment.Center
shape1.VerticalOrigin = VerticalOrigin.TopMarginArea
shape1.FillColor = Color.Pink
'保存文档
doc.SaveToFile("ColorBackground1.docx", FileFormat.Docx2013)
System.Diagnostics.Process.Start("ColorBackground1.docx")
End Sub
End Class
End Namespace

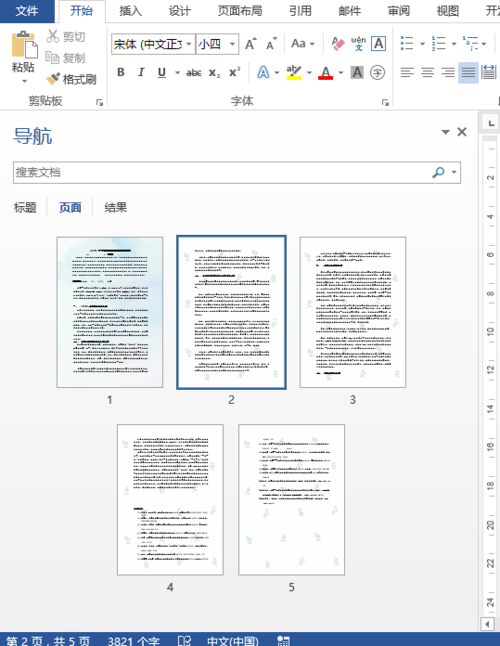

1.2 设置图片背景
【C#】
using Spire.Doc;
using Spire.Doc.Documents;
using Spire.Doc.Fields;
namespace DifferentBackground1
{
class Program
{
static void Main(string[] args)
{
//加载Word测试文档
Document doc = new Document();
doc.LoadFromFile("测试.docx");
//获取第一节
Section section = doc.Sections[0];
//设置首页页眉页脚不同
section.PageSetup.DifferentFirstPageHeaderFooter = true;
HeaderFooter firstpageheader = section.HeadersFooters.FirstPageFooter;//获取首页页眉
firstpageheader.Paragraphs.Clear();//清除页眉默认的段落格式（因默认页眉格式中包含有一条横线）
Paragraph firstpara = firstpageheader.AddParagraph();//重新添加段落
//获取页面宽度、高度
float width = section.PageSetup.PageSize.Width;
float height = section.PageSetup.PageSize.Height;
//添加图片到首页页眉
DocPicture pic0 = firstpara.AppendPicture("1.png");
pic0.TextWrappingStyle = TextWrappingStyle.Behind;
pic0.HorizontalAlignment = ShapeHorizontalAlignment.Center;
pic0.VerticalOrigin = VerticalOrigin.TopMarginArea;
pic0.Width = width;
pic0.Height = height;
//在其他页面的页眉中添加图片
HeaderFooter otherheader = section.HeadersFooters.Header;
otherheader.Paragraphs.Clear();
Paragraph otherpara = otherheader.AddParagraph();
DocPicture pic1 = otherpara.AppendPicture("2.png");
pic1.TextWrappingStyle = TextWrappingStyle.Behind;
pic1.HorizontalAlignment = ShapeHorizontalAlignment.Center;
pic1.VerticalOrigin = VerticalOrigin.TopMarginArea;
pic1.Width = width;
pic1.Height = height;
//保存文档
doc.SaveToFile("ImageBackground1.docx", FileFormat.Docx2013);
System.Diagnostics.Process.Start("ImageBackground1.docx");
}
}
}
【VB.NET】
Imports Spire.Doc
Imports Spire.Doc.Documents
Imports Spire.Doc.Fields
Namespace DifferentBackground1
Class Program
Private Shared Sub Main(args As String())
'加载Word测试文档
Dim doc As New Document()
doc.LoadFromFile("测试.docx")
'获取第一节
Dim section As Section = doc.Sections(0)
'设置首页页眉页脚不同
section.PageSetup.DifferentFirstPageHeaderFooter = True
Dim firstpageheader As HeaderFooter = section.HeadersFooters.FirstPageFooter
'获取首页页眉
firstpageheader.Paragraphs.Clear()
'清除页眉默认的段落格式（因默认页眉格式中包含有一条横线）
Dim firstpara As Paragraph = firstpageheader.AddParagraph()
'重新添加段落
'获取页面宽度、高度
Dim width As Single = section.PageSetup.PageSize.Width
Dim height As Single = section.PageSetup.PageSize.Height
'添加图片到首页页眉
Dim pic0 As DocPicture = firstpara.AppendPicture("1.png")
pic0.TextWrappingStyle = TextWrappingStyle.Behind
pic0.HorizontalAlignment = ShapeHorizontalAlignment.Center
pic0.VerticalOrigin = VerticalOrigin.TopMarginArea
pic0.Width = width
pic0.Height = height
'在其他页面的页眉中添加图片
Dim otherheader As HeaderFooter = section.HeadersFooters.Header
otherheader.Paragraphs.Clear()
Dim otherpara As Paragraph = otherheader.AddParagraph()
Dim pic1 As DocPicture = otherpara.AppendPicture("2.png")
pic1.TextWrappingStyle = TextWrappingStyle.Behind
pic1.HorizontalAlignment = ShapeHorizontalAlignment.Center
pic1.VerticalOrigin = VerticalOrigin.TopMarginArea
pic1.Width = width
pic1.Height = height
'保存文档
doc.SaveToFile("ImageBackground1.docx", FileFormat.Docx2013)
System.Diagnostics.Process.Start("ImageBackground1.docx")
End Sub
End Class
End Namespace
2. 设置指定多个页面背景不同
注：给多个页面设置不同背景时，需要通过获取不同节的页眉来设置，本次程序环境中所用源文档已设置了多个节，如需手动设置分节，可参考代码：
document.Sections[0].Paragraphs[0].InsertSectionBreak(SectionBreakType.NoBreak);

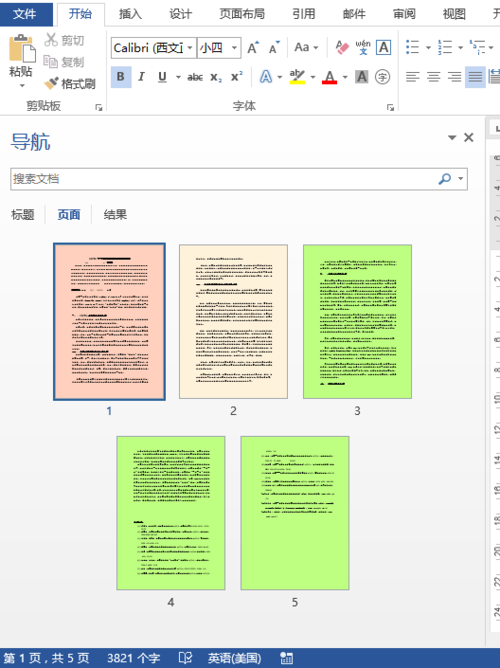

2.1 设置纯色背景
【C#】
using Spire.Doc;
using Spire.Doc.Documents;
using Spire.Doc.Fields;
using System.Drawing;
namespace DifferentBackground2
{
class Program
{
static void Main(string[] args)
{
//加载Word文档
Document doc = new Document();
doc.LoadFromFile("测试.docx");
//获取第一节
Section section1 = doc.Sections[0];
//获取页面宽度、高度
float width = section1.PageSetup.PageSize.Width;
float height = section1.PageSetup.PageSize.Height;
//添加图片到页眉
HeaderFooter header1 = section1.HeadersFooters.Header;
header1.Paragraphs.Clear();
Paragraph para1 = header1.AddParagraph();
ShapeObject shape1 = para1.AppendShape(width, height, ShapeType.Rectangle);//添加形状
shape1.BehindText = true;//设置形状衬于文字下方
shape1.HorizontalAlignment = ShapeHorizontalAlignment.Center;//设置对齐方式，铺满页面
shape1.VerticalOrigin = VerticalOrigin.TopMarginArea;
shape1.FillColor = Color.LightSalmon;//形状颜色
//同理设置第二节页眉中的图片
Section section2 = doc.Sections[1];
HeaderFooter header2 = section2.HeadersFooters.Header;
header2.Paragraphs.Clear();
Paragraph para2 = header2.AddParagraph();
ShapeObject shape2 = para2.AppendShape(width, height, ShapeType.Rectangle);//添加形状
shape2.BehindText = true;//设置形状衬于文字下方
shape2.HorizontalAlignment = ShapeHorizontalAlignment.Center;//设置对齐方式，铺满页面
shape2.VerticalOrigin = VerticalOrigin.TopMarginArea;
shape2.FillColor = Color.Moccasin;//形状颜色
//同理设置第三节中的页眉中的图片
Section section3 = doc.Sections[2];
HeaderFooter header3 = section3.HeadersFooters.Header;
header3.Paragraphs.Clear();
Paragraph para3 = header3.AddParagraph();
ShapeObject shape3 = para3.AppendShape(width, height, ShapeType.Rectangle);//添加形状
shape3.BehindText = true;//设置形状衬于文字下方
shape3.HorizontalAlignment = ShapeHorizontalAlignment.Center;//设置对齐方式，铺满页面
shape3.VerticalOrigin = VerticalOrigin.TopMarginArea;
shape3.FillColor = Color.LawnGreen;//形状颜色
//保存文档
doc.SaveToFile("ColorBackground2.docx", FileFormat.Docx2013);
System.Diagnostics.Process.Start("ColorBackground2.docx");
}
}
}
【VB.NET】
Imports Spire.Doc
Imports Spire.Doc.Documents
Imports Spire.Doc.Fields
Imports System.Drawing
Namespace DifferentBackground2
Class Program
Private Shared Sub Main(args As String())
'加载Word文档
Dim doc As New Document()
doc.LoadFromFile("测试.docx")
'获取第一节
Dim section1 As Section = doc.Sections(0)
'获取页面宽度、高度
Dim width As Single = section1.PageSetup.PageSize.Width
Dim height As Single = section1.PageSetup.PageSize.Height
'添加图片到页眉
Dim header1 As HeaderFooter = section1.HeadersFooters.Header
header1.Paragraphs.Clear()
Dim para1 As Paragraph = header1.AddParagraph()
Dim shape1 As ShapeObject = para1.AppendShape(width, height, ShapeType.Rectangle)
'添加形状
shape1.BehindText = True
'设置形状衬于文字下方
shape1.HorizontalAlignment = ShapeHorizontalAlignment.Center
'设置对齐方式，铺满页面
shape1.VerticalOrigin = VerticalOrigin.TopMarginArea
shape1.FillColor = Color.LightSalmon
'形状颜色
'同理设置第二节页眉中的图片
Dim section2 As Section = doc.Sections(1)
Dim header2 As HeaderFooter = section2.HeadersFooters.Header
header2.Paragraphs.Clear()
Dim para2 As Paragraph = header2.AddParagraph()
Dim shape2 As ShapeObject = para2.AppendShape(width, height, ShapeType.Rectangle)
'添加形状
shape2.BehindText = True
'设置形状衬于文字下方
shape2.HorizontalAlignment = ShapeHorizontalAlignment.Center
'设置对齐方式，铺满页面
shape2.VerticalOrigin = VerticalOrigin.TopMarginArea
shape2.FillColor = Color.Moccasin
'形状颜色
'同理设置第三节中的页眉中的图片
Dim section3 As Section = doc.Sections(2)
Dim header3 As HeaderFooter = section3.HeadersFooters.Header
header3.Paragraphs.Clear()
Dim para3 As Paragraph = header3.AddParagraph()
Dim shape3 As ShapeObject = para3.AppendShape(width, height, ShapeType.Rectangle)
'添加形状
shape3.BehindText = True
'设置形状衬于文字下方
shape3.HorizontalAlignment = ShapeHorizontalAlignment.Center
'设置对齐方式，铺满页面
shape3.VerticalOrigin = VerticalOrigin.TopMarginArea
shape3.FillColor = Color.LawnGreen
'形状颜色
'保存文档
doc.SaveToFile("ColorBackground2.docx", FileFormat.Docx2013)
System.Diagnostics.Process.Start("ColorBackground2.docx")
End Sub
End Class
End Namespace

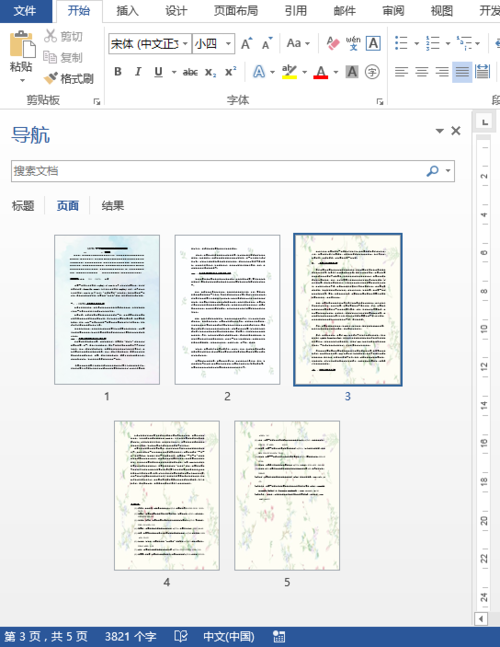

2.2 设置图片背景
【C#】
using Spire.Doc;
using Spire.Doc.Documents;
using Spire.Doc.Fields;
namespace DifferentBackground2
{
class Program
{
static void Main(string[] args)
{
//加载Word文档
Document doc = new Document();
doc.LoadFromFile("测试.docx");
//获取第一节
Section section1 = doc.Sections[0];
//添加图片到页眉
HeaderFooter header1 = section1.HeadersFooters.Header;
header1.Paragraphs.Clear();
Paragraph para1 = header1.AddParagraph();
DocPicture pic1 = para1.AppendPicture("1.png");
pic1.TextWrappingStyle = TextWrappingStyle.Behind;
pic1.HorizontalAlignment = ShapeHorizontalAlignment.Center;
pic1.VerticalOrigin = VerticalOrigin.TopMarginArea;
float width = section1.PageSetup.PageSize.Width;
float height = section1.PageSetup.PageSize.Height;
pic1.Width = width;
pic1.Height = height;
//同理设置第二节页眉中的图片
Section section2 = doc.Sections[1];
HeaderFooter header2 = section2.HeadersFooters.Header;
header2.Paragraphs.Clear();
Paragraph para2 = header2.AddParagraph();
DocPicture pic2 = para2.AppendPicture("2.png");
pic2.TextWrappingStyle = TextWrappingStyle.Behind;
pic2.HorizontalAlignment = ShapeHorizontalAlignment.Center;
pic2.VerticalOrigin = VerticalOrigin.TopMarginArea;
pic2.Width = width;
pic2.Height = height;
//同理设置第三节中的页眉中的图片
Section section3 = doc.Sections[2];
HeaderFooter header3 = section3.HeadersFooters.Header;
header3.Paragraphs.Clear();
Paragraph para3 = header3.AddParagraph();
DocPicture pic3 = para3.AppendPicture("3.png");
pic3.TextWrappingStyle = TextWrappingStyle.Behind;
pic3.HorizontalAlignment = ShapeHorizontalAlignment.Center;
pic3.VerticalOrigin = VerticalOrigin.TopMarginArea;
pic3.Width = width;
pic3.Height = height;
//保存文档
doc.SaveToFile("ImageBackground2.docx", FileFormat.Docx2013);
System.Diagnostics.Process.Start("ImageBackground2.docx");
}
}
}
【VB.NET】
Imports Spire.Doc
Imports Spire.Doc.Documents
Imports Spire.Doc.Fields
Namespace DifferentBackground2
Class Program
Private Shared Sub Main(args As String())
'加载Word文档
Dim doc As New Document()
doc.LoadFromFile("测试.docx")
'获取第一节
Dim section1 As Section = doc.Sections(0)
'添加图片到页眉
Dim header1 As HeaderFooter = section1.HeadersFooters.Header
header1.Paragraphs.Clear()
Dim para1 As Paragraph = header1.AddParagraph()
Dim pic1 As DocPicture = para1.AppendPicture("1.png")
pic1.TextWrappingStyle = TextWrappingStyle.Behind
pic1.HorizontalAlignment = ShapeHorizontalAlignment.Center
pic1.VerticalOrigin = VerticalOrigin.TopMarginArea
Dim width As Single = section1.PageSetup.PageSize.Width
Dim height As Single = section1.PageSetup.PageSize.Height
pic1.Width = width
pic1.Height = height
'同理设置第二节页眉中的图片
Dim section2 As Section = doc.Sections(1)
Dim header2 As HeaderFooter = section2.HeadersFooters.Header
header2.Paragraphs.Clear()
Dim para2 As Paragraph = header2.AddParagraph()
Dim pic2 As DocPicture = para2.AppendPicture("2.png")
pic2.TextWrappingStyle = TextWrappingStyle.Behind
pic2.HorizontalAlignment = ShapeHorizontalAlignment.Center
pic2.VerticalOrigin = VerticalOrigin.TopMarginArea
pic2.Width = width
pic2.Height = height
'同理设置第三节中的页眉中的图片
Dim section3 As Section = doc.Sections(2)
Dim header3 As HeaderFooter = section3.HeadersFooters.Header
header3.Paragraphs.Clear()
Dim para3 As Paragraph = header3.AddParagraph()
Dim pic3 As DocPicture = para3.AppendPicture("3.png")
pic3.TextWrappingStyle = TextWrappingStyle.Behind
pic3.HorizontalAlignment = ShapeHorizontalAlignment.Center
pic3.VerticalOrigin = VerticalOrigin.TopMarginArea
pic3.Width = width
pic3.Height = height
'保存文档
doc.SaveToFile("ImageBackground2.docx", FileFormat.Docx2013)
System.Diagnostics.Process.Start("ImageBackground2.docx")
End Sub
End Class
End Namespace
共同学习，写下你的评论
评论加载中...
作者其他优质文章
