首页手记【笔记5-购物车及地址模块】从0开始...

【笔记5-购物车及地址模块】从0开始独立完成企业级Java电商网站开发(服务端)

标签：

Java

购物车模块

数据库表设计

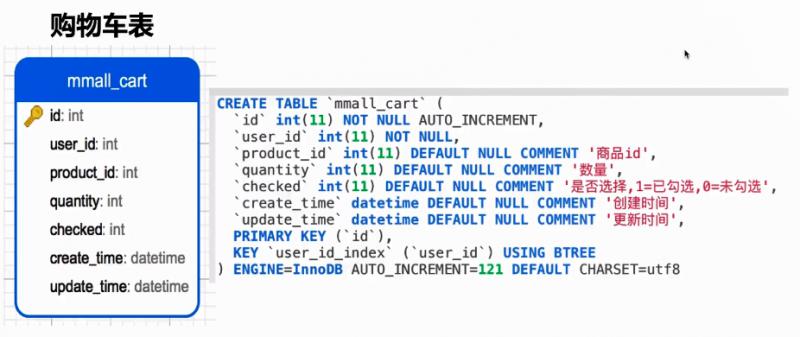

购物车表

CREATE TABLE mmall_ cart (
'id' int(11) NOT NULL AUTO_ INCREMENT,
'user_ id' int(11) NOT NULL,
'product_ id' int(11) DEFAULT NULL COMMENT ' 商品id',
'quantity' int(11) DEFAULT NULL COMMENT  '数量',
'checked' int(11) DEFAULT NULL COMMENT ' 是否选择，1=已勾选,0=未勾选' ,
'create_ time' datetime DEFAULT NULL COMMENT ' 创建时间'
'update_ _time' datetime DEFAULT NULL COMMENT ' 更新时间' ,
PRIMARY KEY (' id'),
KEY 'user_ id_ index' (user_ id') USING BTREE
) ENGINE=InnoDB AUTO_ INCREMENT=121 DEFAULT CHARSET=utf8

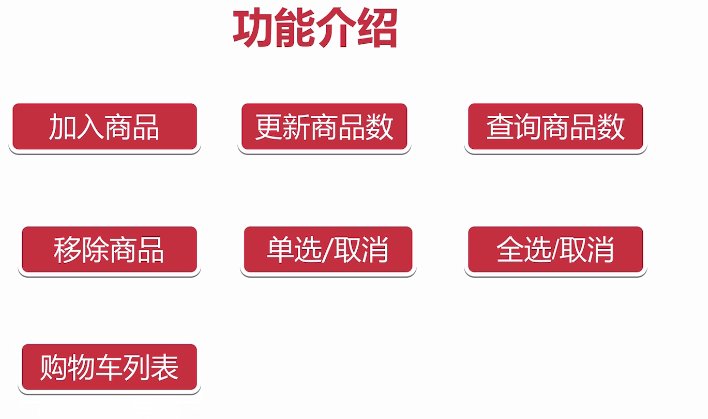

功能

加入商品
更新商品数
查询商品数
移除商品
单选/取消
全选/取消
购物车列表

涉及知识点

购物车模块的设计思想

如何封装一个高复用购物车核心方法

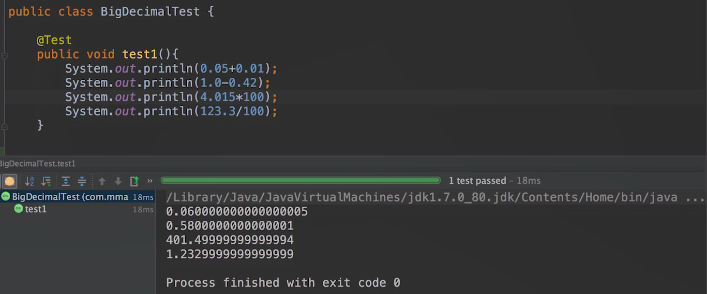

解决浮点型商业运算中丢失精度的问题

接口设计

【门户】

####1.购物车List列表

/cart/list.do

http://localhost:8080/cart/list.do

注意点：

需要先登录,所有的密码都是123
NEED_LOGIN(10, “NEED_LOGIN”),//需要登录的错误编码
价格的单位是元,保留小数后2位

request

无参数,需要登录状态

response

success


{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 1,
                "userId": 13,
                "productId": 1,
                "quantity": 1,
                "productName": "iphone7",
                "productSubtitle": "双十一促销",
                "productMainImage": "mainimage.jpg",
                "productPrice": 7199.22,
                "productStatus": 1,
                "productTotalPrice": 7199.22,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            },
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 10198.33
    }
}

####2.购物车添加商品

/cart/add.do

http://localhost:8080/cart/add.do?productId=1&count=10

请注意这个字段，超过数量会返回这样的标识"limitQuantity"

失败的：LIMIT_NUM_FAIL
成功的：LIMIT_NUM_SUCCESS

request

productId,count

response

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 1,
                "userId": 13,
                "productId": 1,
                "quantity": 12,
                "productName": "iphone7",
                "productSubtitle": "双十一促销",
                "productMainImage": "mainimage.jpg",
                "productPrice": 7199.22,
                "productStatus": 1,
                "productTotalPrice": 86390.64,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            },
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 89389.75
    }
}

####3.更新购物车某个产品数量

/cart/update.do

http://localhost:8080/cart/update.do?productId=1&count=2

request

productId,count

response

响应同2

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 1,
                "userId": 13,
                "productId": 1,
                "quantity": 12,
                "productName": "iphone7",
                "productSubtitle": "双十一促销",
                "productMainImage": "mainimage.jpg",
                "productPrice": 7199.22,
                "productStatus": 1,
                "productTotalPrice": 86390.64,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            },
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 89389.75
    }
}

####4.移除购物车某个产品

/cart/delete_product.do

http://localhost:8080/cart/delete_product.do?productIds=1,3

request

productIds

response

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 2999.11
    }
}

####5.购物车选中某个商品

/cart/select.do

http://localhost:8080/cart/select.do?productId=1

request

productId

response

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 1,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 2999.11
    }
}

####6.购物车取消选中某个商品

/cart/un_select.do

http://localhost:8080/cart/un_select.do?productId=2

注意返回值中的cartTotalPrice，如果反选之后总价的变化

request

productId

response

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 0,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 0
    }
}

####7.查询在购物车里的产品数量

/cart/get_cart_product_count.do

http://localhost:8080/cart/get_cart_product_count.do

未登录返回0

request

无

response

success

{
    "status": 0,
    "data": 0

}

####8.购物车全选

/cart/select_all.do

http://localhost:8080/cart/select_all.do

注意返回值中的cartTotalPrice的变化

request

无

response

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 0,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 2999.11
    }
}

####9.购物车取消全选

/cart/un_select_all.do

http://localhost:8080/cart/un_select_all.do

注意返回值中的cartTotalPrice总价的变化

request

无

response

success

{
    "status": 0,
    "data": {
        "cartProductVoList": [
            {
                "id": 2,
                "userId": 13,
                "productId": 2,
                "quantity": 1,
                "productName": "oppo R8",
                "productSubtitle": "oppo促销进行中",
                "productMainImage": "mainimage.jpg",
                "productPrice": 2999.11,
                "productStatus": 1,
                "productTotalPrice": 2999.11,
                "productStock": 86,
                "productChecked": 0,
                "limitQuantity": "LIMIT_NUM_SUCCESS"
            }
        ],
        "allChecked": true,
        "cartTotalPrice": 0
    }
}

收货地址模块

数据库表设计

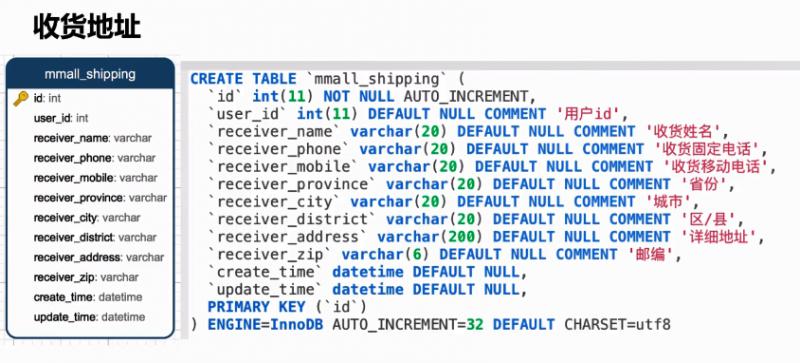

收货地址表

CREATE TABLE‘mmall_ shipping (
'id' int(11) NOT NULL AUTO_INCREMENT,
'user_ id'  int(11) DEFAULT NULL COMMENT '用户id'',
'receiver_ name' varchar(20) DEFAULT NULL COMMENT '收货姓名',
'receiver_ phone' varchar(20) DEFAULT NULL COMMENT '收货固定电话',
'receiver_ _mobile' varchar(20) DEFAULT NULL COMMENT ' 收货移动电话'',
'receiver_ province' varchar(20) DEFAULT NULL COMMENT '省份',
'receiver_ _city' varchar(20) DEFAULT NULL COMMENT ' 城市'',
'receiver_ _district' varchar (20) DEFAULT NULL COMMENT '区/县'',
'receiver_ address'  varchar(200) DEFAULT NULL COMMENT ' 详细地址',
'receiver_ zip'  varchar(6) DEFAULT NULL COMMENT ' 邮编' ,
'create_ _time' datetime DEFAULT NULL,
'update_ time' datetime DEFAULT NULL,
PRIMARY KEY ('id')
) ENGINE=InnoDB AUTO_ INCREMENT=32 DEFAULT CHARSET=utf8

功能

添加地址
删除地址
更新地址
地址列表
地址分页
地址详情

涉及知识点

SpringMVC数据绑定中对象绑定
mybatis自动生成主键、配置和使用
如何避免横向越权漏洞的巩固

接口设计

【前台】

####1.添加地址

/shipping/add.do

http://localhost:8080/shipping/add.do?userId=1&receiverName=geely&receiverPhone=010&receiverMobile=18688888888&receiverProvince=北京&receiverCity=北京市&receiverAddress=中关村&receiverZip=100000

request

userId=1
receiverName=geely
receiverPhone=010
receiverMobile=18688888888
receiverProvince=北京
receiverCity=北京市
receiverAddress=中关村
receiverZip=100000

response

success

{
    "status": 0,
    "msg": "新建地址成功",
    "data": {
        "shippingId": 28
    }
}

####2.删除地址

/shipping/del.do

request

shippingId

response

success

{
    "status": 0,
    "msg": "删除地址成功"
}

####3.登录状态更新地址

/shipping/update.do

http://localhost:8080/shipping/update.do?id=5&receiverName=AAA&receiverPhone=010&receiverMobile=18688888888&receiverProvince=北京&receiverCity=北京市&receiverDistrict=海淀区&receiverAddress=中关村&receiverZip=100000

request

id=1
receiverName=geely
receiverPhone=010
receiverMobile=18688888888
receiverProvince=北京
receiverCity=北京市
receiverAddress=中关村
receiverZip=100000

response

success

{
    "status": 0,
    "msg": "更新地址成功"
}

####4.选中查看具体的地址

/shipping/select.do

request

shippingId

response

success

{
    "status": 0,
    "data": {
        "id": 4,
        "userId": 13,
        "receiverName": "geely",
        "receiverPhone": "010",
        "receiverMobile": "18688888888",
        "receiverProvince": "北京",
        "receiverCity": "北京市",
        "receiverAddress": "中关村",
        "receiverZip": "100000",
        "createTime": 1485066385000,
        "updateTime": 1485066385000
    }
}

####5.地址列表

/shipping/list.do

http://localhost:8080/shipping/list.do

request

pageNum(默认1),pageSize(默认10)

response

success

{
    "status": 0,
    "data": {
        "pageNum": 1,
        "pageSize": 10,
        "size": 2,
        "orderBy": null,
        "startRow": 1,
        "endRow": 2,
        "total": 2,
        "pages": 1,
        "list": [
            {
                "id": 4,
                "userId": 13,
                "receiverName": "geely",
                "receiverPhone": "010",
                "receiverMobile": "18688888888",
                "receiverProvince": "北京",
                "receiverCity": "北京市",
                "receiverAddress": "中关村",
                "receiverZip": "100000",
                "createTime": 1485066385000,
                "updateTime": 1485066385000
            },
            {
                "id": 5,
                "userId": 13,
                "receiverName": "AAA",
                "receiverPhone": "010",
                "receiverMobile": "18688888888",
                "receiverProvince": "北京",
                "receiverCity": "北京市",
                "receiverAddress": "中关村",
                "receiverZip": "100000",
                "createTime": 1485066392000,
                "updateTime": 1485075875000
            }
        ],
        "firstPage": 1,
        "prePage": 0,
        "nextPage": 0,
        "lastPage": 1,
        "isFirstPage": true,
        "isLastPage": true,
        "hasPreviousPage": false,
        "hasNextPage": false,
        "navigatePages": 8,
        "navigatepageNums": [
            1
        ]
    }
}
