Kotlin + Netty 在 Android 上实现 Socket 的服务端

标签：

Android Kotlin

一. 背景

最近的一个项目：需要使用 Android App 作为 Socket 的服务端，并且一个端口能够同时监听 TCP/Web Socket 协议。

自然而然，项目决定采用 Netty 框架。Netty 服务端在收到客户端发来的消息后，能够做出相应的业务处理。在某些场景下，服务端也需要给客户端 App/网页发送消息。

二. Netty 的使用

2.1 Netty 服务端

首先，定义好 NettyServer，它使用object声明表示是一个单例。用于 Netty 服务端的启动、关闭以及发送消息。

object NettyServer {

    private val TAG = "NettyServer"

    private var channel: Channel?=null
    private lateinit var listener: NettyServerListener<String>
    private lateinit var bossGroup: EventLoopGroup
    private lateinit var workerGroup: EventLoopGroup

    var port = 8888
        set(value)  {
            field = value
        }

    var webSocketPath = "/ws"
        set(value)  {
            field = value
        }

    var isServerStart: Boolean = false
        private set

    fun start() {
        object : Thread() {
            override fun run() {
                super.run()
                bossGroup = NioEventLoopGroup(1)
                workerGroup = NioEventLoopGroup()
                try {
                    val b = ServerBootstrap()
                    b.group(bossGroup, workerGroup)
                            .channel(NioServerSocketChannel::class.java)
                            .localAddress(InetSocketAddress(port))
                            .childOption(ChannelOption.SO_KEEPALIVE, true)
                            .childOption(ChannelOption.SO_REUSEADDR, true)
                            .childOption(ChannelOption.TCP_NODELAY, true)
                            .childHandler(NettyServerInitializer(listener,webSocketPath))

                    // Bind and start to accept incoming connections.
                    val f = b.bind().sync()
                    Log.i(TAG, NettyServer::class.java.name + " started and listen on " + f.channel().localAddress())

                    isServerStart = true
                    listener.onStartServer()
                    f.channel().closeFuture().sync()
                } catch (e: Exception) {
                    Log.e(TAG, e.localizedMessage)
                    e.printStackTrace()
                } finally {
                    isServerStart = false
                    listener.onStopServer()

                    disconnect()
                }
            }
        }.start()

    }

    fun disconnect() {
        workerGroup.shutdownGracefully()
        bossGroup.shutdownGracefully()
    }

    fun setListener(listener: NettyServerListener<String>) {
        this.listener = listener
    }

    // 异步发送TCP消息
    fun sendMsgToClient(data: String, listener: ChannelFutureListener) = channel?.run {

        val flag = this.isActive

        if (flag) {

            this.writeAndFlush(data + System.getProperty("line.separator")).addListener(listener)
        }

        flag
    } ?: false

    // 同步发送TCP消息
    fun sendMsgToClient(data: String) = channel?.run {

        if (this.isActive) {

            return this.writeAndFlush(data + System.getProperty("line.separator")).awaitUninterruptibly().isSuccess
        }

        false
    } ?: false

    // 异步发送WebSocket消息
    fun sendMsgToWS(data: String,listener: ChannelFutureListener) = channel?.run {

        val flag = this.isActive

        if (flag) {

            this.writeAndFlush(TextWebSocketFrame(data)).addListener(listener)
        }

        flag
    } ?: false

    // 同步发送TCP消息
    fun sendMsgToWS(data: String) = channel?.run {

        if (this.isActive) {

            return this.writeAndFlush(TextWebSocketFrame(data)).awaitUninterruptibly().isSuccess
        }

        false
    } ?: false

    /**
     * 切换通道
     * 设置服务端，与哪个客户端通信
     * @param channel
     */
    fun selectorChannel(channel: Channel?) {
        this.channel = channel
    }
}

NettyServerInitializer 是服务端跟客户端连接之后使用的 childHandler：

class NettyServerInitializer(private val mListener: NettyServerListener<String>,private val webSocketPath:String) : ChannelInitializer<SocketChannel>() {

    @Throws(Exception::class)
    public override fun initChannel(ch: SocketChannel) {

        val pipeline = ch.pipeline()

        pipeline.addLast("active",ChannelActiveHandler(mListener))
        pipeline.addLast("socketChoose", SocketChooseHandler(webSocketPath))

        pipeline.addLast("string_encoder",StringEncoder(CharsetUtil.UTF_8))
        pipeline.addLast("linebased",LineBasedFrameDecoder(1024))
        pipeline.addLast("string_decoder",StringDecoder(CharsetUtil.UTF_8))
        pipeline.addLast("commonhandler", CustomerServerHandler(mListener))
    }
}

NettyServerInitializer 包含了多个 Handler：连接使用的ChannelActiveHandler，协议选择使用的 SocketChooseHandler，TCP 消息使用的 StringEncoder、LineBasedFrameDecoder、StringDecoder，以及最终处理消息的 CustomerServerHandler。

ChannelActiveHandler:

@ChannelHandler.Sharable
class ChannelActiveHandler(var mListener: NettyServerListener<String>) : ChannelInboundHandlerAdapter() {

    @Throws(Exception::class)
    override fun channelActive(ctx: ChannelHandlerContext) {

        val insocket = ctx.channel().remoteAddress() as InetSocketAddress
        val clientIP = insocket.address.hostAddress
        val clientPort = insocket.port

        Log.i("ChannelActiveHandler","新的连接：$clientIP : $clientPort")
        mListener.onChannelConnect(ctx.channel())
    }

}

SocketChooseHandler 通过读取消息来区分是 WebSocket 还是 Socket。如果是 WebSocket 的话，去掉 Socket 使用的相关 Handler。

class SocketChooseHandler(val webSocketPath:String) : ByteToMessageDecoder() {

    @Throws(Exception::class)
    override fun decode(ctx: ChannelHandlerContext, `in`: ByteBuf, out: List<Any>) {
        val protocol = getBufStart(`in`)
        if (protocol.startsWith(WEBSOCKET_PREFIX)) {
            PipelineAdd.websocketAdd(ctx,webSocketPath)

            ctx.pipeline().remove("string_encoder")
            ctx.pipeline().remove("linebased")
            ctx.pipeline().remove("string_decoder")
        }
        `in`.resetReaderIndex()
        ctx.pipeline().remove(this.javaClass)
    }

    private fun getBufStart(`in`: ByteBuf): String {
        var length = `in`.readableBytes()
        if (length > MAX_LENGTH) {
            length = MAX_LENGTH
        }

        // 标记读位置
        `in`.markReaderIndex()
        val content = ByteArray(length)
        `in`.readBytes(content)
        return String(content)
    }

    companion object {
        /** 默认暗号长度为23  */
        private val MAX_LENGTH = 23
        /** WebSocket握手的协议前缀  */
        private val WEBSOCKET_PREFIX = "GET /"
    }
}

StringEncoder、LineBasedFrameDecoder、StringDecoder 都是 Netty 内置的编、解码器。其中，LineBasedFrameDecoder 用于解决 TCP粘包/拆包的问题。

CustomerServerHandler:

@ChannelHandler.Sharable
class CustomerServerHandler(private val mListener: NettyServerListener<String>) : SimpleChannelInboundHandler<Any>() {

    @Throws(Exception::class)
    override fun channelReadComplete(ctx: ChannelHandlerContext) {
    }

    override fun exceptionCaught(ctx: ChannelHandlerContext,
                                 cause: Throwable) {
        cause.printStackTrace()
        ctx.close()
    }

    @Throws(Exception::class)
    override fun channelRead0(ctx: ChannelHandlerContext, msg: Any) {

        val buff = msg as ByteBuf
        val info = buff.toString(CharsetUtil.UTF_8)
        Log.d(TAG,"收到消息内容：$info")
    }

    @Throws(Exception::class)
    override fun channelRead(ctx: ChannelHandlerContext, msg: Any) {

        if (msg is WebSocketFrame) {  // 处理 WebSocket 消息

            val webSocketInfo = (msg as TextWebSocketFrame).text().trim { it <= ' ' }

            Log.d(TAG, "收到WebSocketSocket消息：$webSocketInfo")

            mListener.onMessageResponseServer(webSocketInfo , ctx.channel().id().asShortText())
        } else if (msg is String){   // 处理 Socket 消息

            Log.d(TAG, "收到socket消息：$msg")

            mListener.onMessageResponseServer(msg, ctx.channel().id().asShortText())
        }
    }

    // 断开连接
    @Throws(Exception::class)
    override fun channelInactive(ctx: ChannelHandlerContext) {
        super.channelInactive(ctx)
        Log.d(TAG, "channelInactive")

        val reAddr = ctx.channel().remoteAddress() as InetSocketAddress
        val clientIP = reAddr.address.hostAddress
        val clientPort = reAddr.port

        Log.d(TAG,"连接断开：$clientIP : $clientPort")

        mListener.onChannelDisConnect(ctx.channel())
    }

    companion object {

        private val TAG = "CustomerServerHandler"
    }
}

2.2 Netty 客户端

客户端也需要一个启动、关闭、发送消息的 NettyTcpClient，并且 NettyTcpClient 的创建采用 Builder 模式。

class NettyTcpClient private constructor(val host: String, val tcp_port: Int, val index: Int) {

    private lateinit var group: EventLoopGroup

    private lateinit var listener: NettyClientListener<String>

    private var channel: Channel? = null

    /**
     * 获取TCP连接状态
     *
     * @return  获取TCP连接状态
     */
    var connectStatus = false

    /**
     * 最大重连次数
     */
    var maxConnectTimes = Integer.MAX_VALUE
        private set

    private var reconnectNum = maxConnectTimes

    private var isNeedReconnect = true

    var isConnecting = false
        private set

    var reconnectIntervalTime: Long = 5000
        private set

    /**
     * 心跳间隔时间
     */
    var heartBeatInterval: Long = 5
        private set//单位秒

    /**
     * 是否发送心跳
     */
    var isSendheartBeat = false
        private set

    /**
     * 心跳数据，可以是String类型，也可以是byte[].
     */
    private var heartBeatData: Any? = null

    fun connect() {
        if (isConnecting) {
            return
        }

        val clientThread = object : Thread("Netty-Client") {
            override fun run() {
                super.run()
                isNeedReconnect = true
                reconnectNum = maxConnectTimes
                connectServer()
            }
        }
        clientThread.start()
    }


    private fun connectServer() {

        synchronized(this@NettyTcpClient) {

            var channelFuture: ChannelFuture?=null

            if (!connectStatus) {
                isConnecting = true
                group = NioEventLoopGroup()
                val bootstrap = Bootstrap().group(group)
                        .option(ChannelOption.TCP_NODELAY, true)//屏蔽Nagle算法试图
                        .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 5000)
                        .channel(NioSocketChannel::class.java as Class<out Channel>?)
                        .handler(object : ChannelInitializer<SocketChannel>() {

                            @Throws(Exception::class)
                            public override fun initChannel(ch: SocketChannel) {

                                if (isSendheartBeat) {
                                    ch.pipeline().addLast("ping", IdleStateHandler(0, heartBeatInterval, 0, TimeUnit.SECONDS)) //5s未发送数据，回调userEventTriggered
                                }

                                ch.pipeline().addLast(StringEncoder(CharsetUtil.UTF_8))
                                ch.pipeline().addLast(StringDecoder(CharsetUtil.UTF_8))
                                ch.pipeline().addLast(LineBasedFrameDecoder(1024))//黏包处理,需要客户端、服务端配合
                                ch.pipeline().addLast(NettyClientHandler(listener, index, isSendheartBeat, heartBeatData))
                            }
                        })

                try {
                    channelFuture = bootstrap.connect(host, tcp_port).addListener {
                        if (it.isSuccess) {
                            Log.d(TAG, "连接成功")
                            reconnectNum = maxConnectTimes
                            connectStatus = true
                            channel = channelFuture?.channel()
                        } else {
                            Log.d(TAG, "连接失败")
                            connectStatus = false
                        }
                        isConnecting = false
                    }.sync()

                    // Wait until the connection is closed.
                    channelFuture.channel().closeFuture().sync()
                    Log.d(TAG, " 断开连接")
                } catch (e: Exception) {
                    e.printStackTrace()
                } finally {
                    connectStatus = false
                    listener.onClientStatusConnectChanged(ConnectState.STATUS_CONNECT_CLOSED, index)

                    if (channelFuture != null) {
                        if (channelFuture.channel() != null && channelFuture.channel().isOpen) {
                            channelFuture.channel().close()
                        }
                    }
                    group.shutdownGracefully()
                    reconnect()
                }
            }
        }
    }


    fun disconnect() {
        Log.d(TAG, "disconnect")
        isNeedReconnect = false
        group.shutdownGracefully()
    }

    fun reconnect() {
        Log.d(TAG, "reconnect")
        if (isNeedReconnect && reconnectNum > 0 && !connectStatus) {
            reconnectNum--
            SystemClock.sleep(reconnectIntervalTime)
            if (isNeedReconnect && reconnectNum > 0 && !connectStatus) {
                Log.e(TAG, "重新连接")
                connectServer()
            }
        }
    }

    /**
     * 异步发送
     *
     * @param data 要发送的数据
     * @param listener 发送结果回调
     * @return 方法执行结果
     */
    fun sendMsgToServer(data: String, listener: MessageStateListener) = channel?.run {

        val flag = this != null && connectStatus

        if (flag) {

            this.writeAndFlush(data + System.getProperty("line.separator")).addListener { channelFuture -> listener.isSendSuccss(channelFuture.isSuccess) }
        }

        flag

    } ?: false

    /**
     * 同步发送
     *
     * @param data 要发送的数据
     * @return 方法执行结果
     */
    fun sendMsgToServer(data: String) = channel?.run {

        val flag = this != null && connectStatus

        if (flag) {

            val channelFuture = this.writeAndFlush(data + System.getProperty("line.separator")).awaitUninterruptibly()
            return channelFuture.isSuccess
        }

        false

    }?:false

    fun setListener(listener: NettyClientListener<String>) {
        this.listener = listener
    }

    /**
     * Builder 模式创建NettyTcpClient
     */
    class Builder {

        /**
         * 最大重连次数
         */
        private var MAX_CONNECT_TIMES = Integer.MAX_VALUE

        /**
         * 重连间隔
         */
        private var reconnectIntervalTime: Long = 5000
        /**
         * 服务器地址
         */
        private var host: String? = null
        /**
         * 服务器端口
         */
        private var tcp_port: Int = 0
        /**
         * 客户端标识，(因为可能存在多个连接)
         */
        private var mIndex: Int = 0

        /**
         * 是否发送心跳
         */
        private var isSendheartBeat: Boolean = false
        /**
         * 心跳时间间隔
         */
        private var heartBeatInterval: Long = 5

        /**
         * 心跳数据，可以是String类型，也可以是byte[].
         */
        private var heartBeatData: Any? = null


        fun setMaxReconnectTimes(reConnectTimes: Int): Builder {
            this.MAX_CONNECT_TIMES = reConnectTimes
            return this
        }


        fun setReconnectIntervalTime(reconnectIntervalTime: Long): Builder {
            this.reconnectIntervalTime = reconnectIntervalTime
            return this
        }


        fun setHost(host: String): Builder {
            this.host = host
            return this
        }

        fun setTcpPort(tcp_port: Int): Builder {
            this.tcp_port = tcp_port
            return this
        }

        fun setIndex(mIndex: Int): Builder {
            this.mIndex = mIndex
            return this
        }

        fun setHeartBeatInterval(intervalTime: Long): Builder {
            this.heartBeatInterval = intervalTime
            return this
        }

        fun setSendheartBeat(isSendheartBeat: Boolean): Builder {
            this.isSendheartBeat = isSendheartBeat
            return this
        }

        fun setHeartBeatData(heartBeatData: Any): Builder {
            this.heartBeatData = heartBeatData
            return this
        }

        fun build(): NettyTcpClient {
            val nettyTcpClient = NettyTcpClient(host!!, tcp_port, mIndex)
            nettyTcpClient.maxConnectTimes = this.MAX_CONNECT_TIMES
            nettyTcpClient.reconnectIntervalTime = this.reconnectIntervalTime
            nettyTcpClient.heartBeatInterval = this.heartBeatInterval
            nettyTcpClient.isSendheartBeat = this.isSendheartBeat
            nettyTcpClient.heartBeatData = this.heartBeatData
            return nettyTcpClient
        }
    }

    companion object {
        private val TAG = "NettyTcpClient"
        private val CONNECT_TIMEOUT_MILLIS = 5000
    }
}

Android 的客户端相对而言比较简单，需要的 Handler 包括：支持心跳的 IdleStateHandler， TCP 消息需要使用的 Handler (跟服务端一样分别是StringEncoder、StringDecoder、LineBasedFrameDecoder)，以及对收到 TCP 消息进行处理的 NettyClientHandler。

NettyClientHandler：

class NettyClientHandler(private val listener: NettyClientListener<String>, private val index: Int, private val isSendheartBeat: Boolean, private val heartBeatData: Any?) : SimpleChannelInboundHandler<String>() {

    /**
     *
     * 设定IdleStateHandler心跳检测每x秒进行一次读检测，
     * 如果x秒内ChannelRead()方法未被调用则触发一次userEventTrigger()方法
     *
     * @param ctx ChannelHandlerContext
     * @param evt IdleStateEvent
     */
    override fun userEventTriggered(ctx: ChannelHandlerContext, evt: Any) {

        if (evt is IdleStateEvent) {
            if (evt.state() == IdleState.WRITER_IDLE) {   //发送心跳

                if (isSendheartBeat) {
                    if (heartBeatData == null) {

                        ctx.channel().writeAndFlush("Heartbeat" + System.getProperty("line.separator")!!)
                    } else {

                        if (heartBeatData is String) {
                            Log.d(TAG, "userEventTriggered: String")
                            ctx.channel().writeAndFlush(heartBeatData + System.getProperty("line.separator")!!)
                        } else if (heartBeatData is ByteArray) {
                            Log.d(TAG, "userEventTriggered: byte")
                            val buf = Unpooled.copiedBuffer((heartBeatData as ByteArray?)!!)
                            ctx.channel().writeAndFlush(buf)
                        } else {

                            Log.d(TAG, "userEventTriggered: heartBeatData type error")
                        }
                    }
                } else {
                    Log.d(TAG, "不发送心跳")
                }
            }
        }
    }

    /**
     *
     * 客户端上线
     *
     * @param ctx ChannelHandlerContext
     */
    override fun channelActive(ctx: ChannelHandlerContext) {

        Log.d(TAG, "channelActive")
        listener.onClientStatusConnectChanged(ConnectState.STATUS_CONNECT_SUCCESS, index)
    }

    /**
     *
     * 客户端下线
     *
     * @param ctx ChannelHandlerContext
     */
    override fun channelInactive(ctx: ChannelHandlerContext) {

        Log.d(TAG, "channelInactive")
    }

    /**
     * 客户端收到消息
     *
     * @param channelHandlerContext ChannelHandlerContext
     * @param msg                   消息
     */
    override fun channelRead0(channelHandlerContext: ChannelHandlerContext, msg: String) {

        Log.d(TAG, "channelRead0:")
        listener.onMessageResponseClient(msg, index)
    }

    /**
     * @param ctx   ChannelHandlerContext
     * @param cause 异常
     */
    override fun exceptionCaught(ctx: ChannelHandlerContext, cause: Throwable) {

        Log.e(TAG, "exceptionCaught")
        listener.onClientStatusConnectChanged(ConnectState.STATUS_CONNECT_ERROR, index)
        cause.printStackTrace()
        ctx.close()
    }

    companion object {

        private val TAG = "NettyClientHandler"
    }
}

三. Demo 的实现

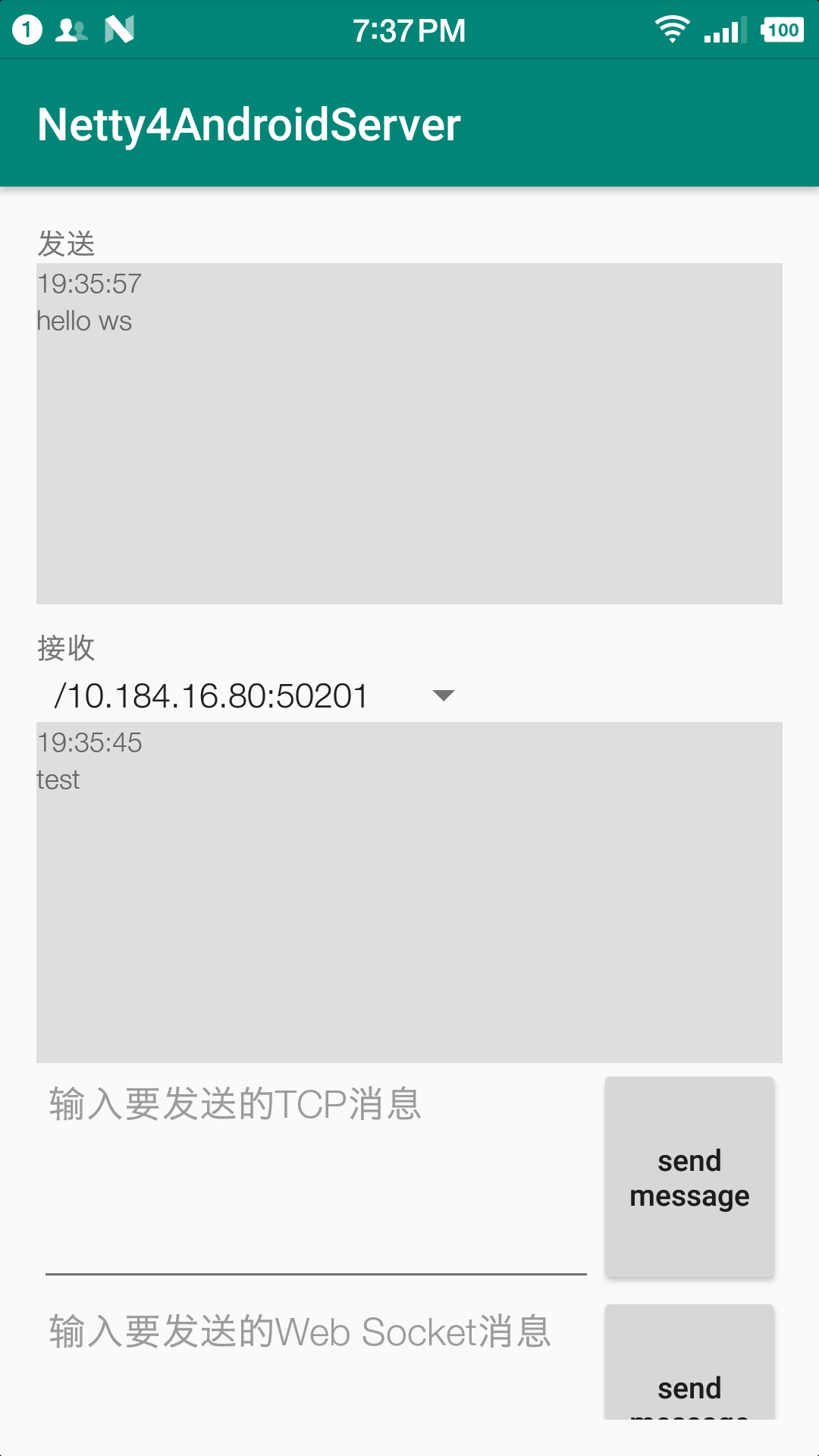

3.1 Socket 服务端

启动 NettyServer：

    private fun startServer() {

        if (!NettyServer.isServerStart) {
            NettyServer.setListener(this@MainActivity)
            NettyServer.port = port
            NettyServer.webSocketPath = webSocketPath
            NettyServer.start()
        } else {
            NettyServer.disconnect()
        }
    }

NettyServer 异步发送 TCP 消息：

NettyServer.sendMsgToClient(msg, ChannelFutureListener { channelFuture ->

        if (channelFuture.isSuccess) {

            msgSend(msg)
      }
})

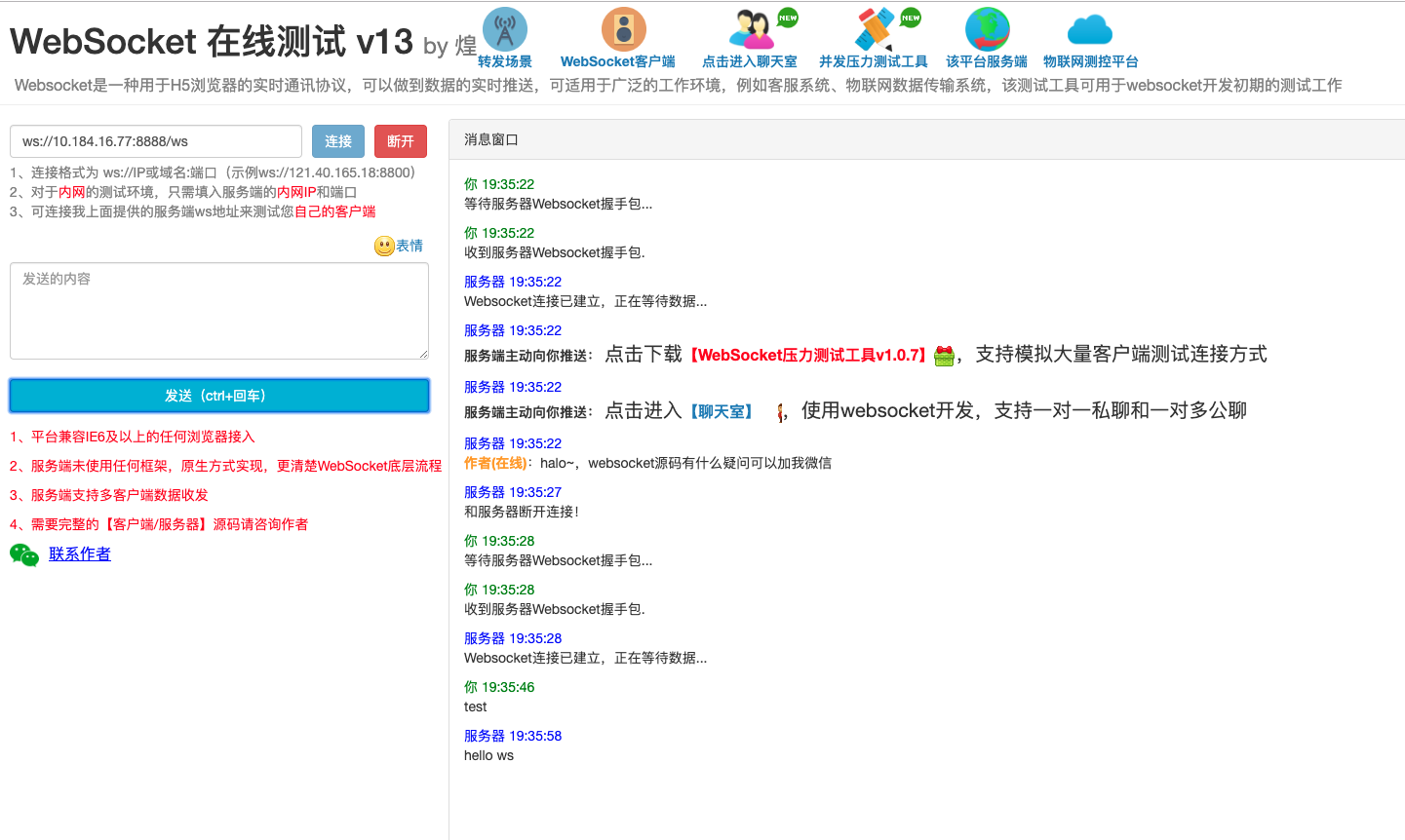

NettyServer 异步发送 WebSocket 消息：

NettyServer.sendMsgToWS(msg, ChannelFutureListener { channelFuture ->

        if (channelFuture.isSuccess) {

              msgSend(msg)
      }
 })

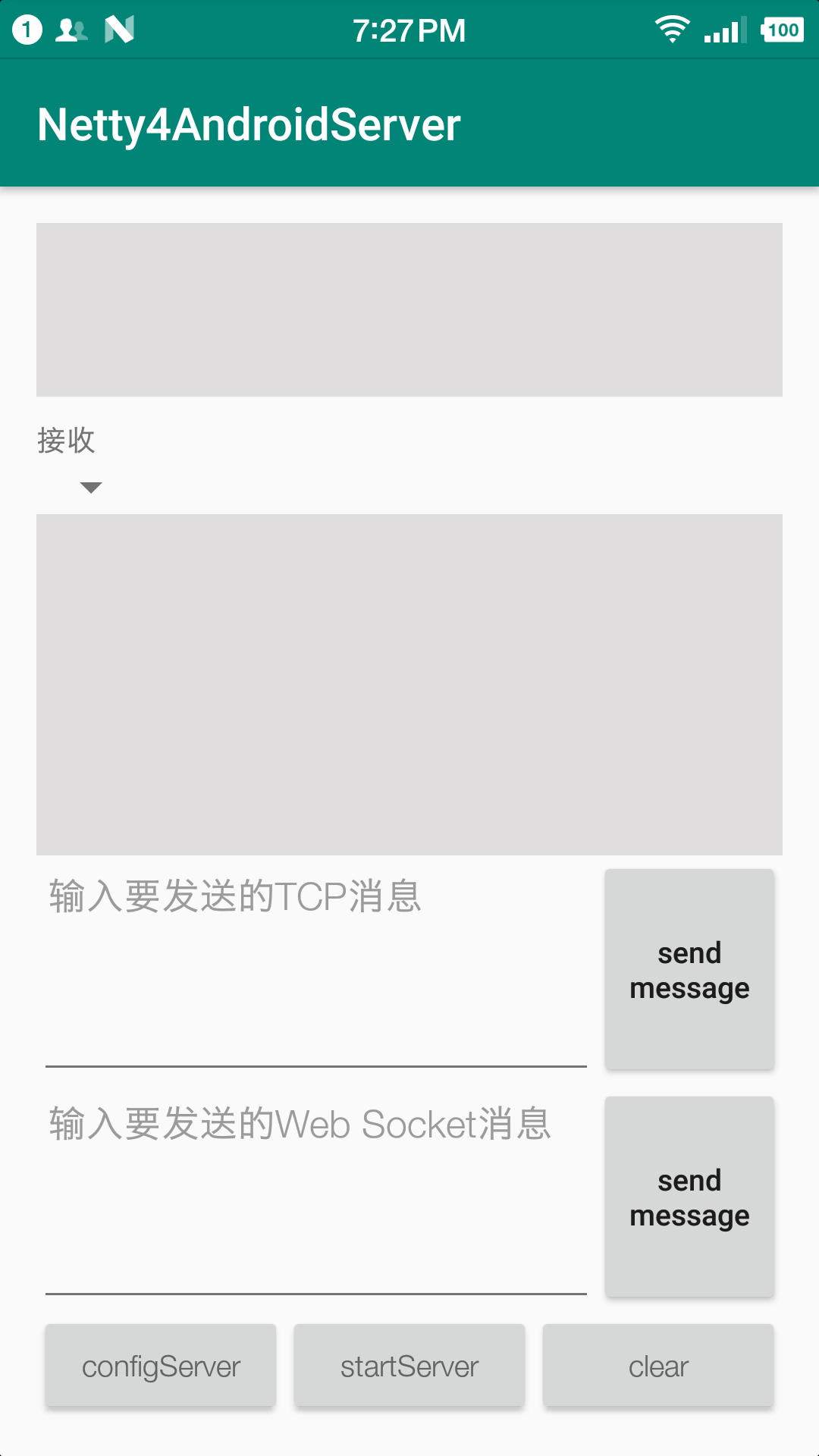

Demo 可以通过 startServer 来启动 Socket 服务端，也可以在启动之前点击 configServer 来修改服务端的端口以及 WebSocket 的 Endpoint。

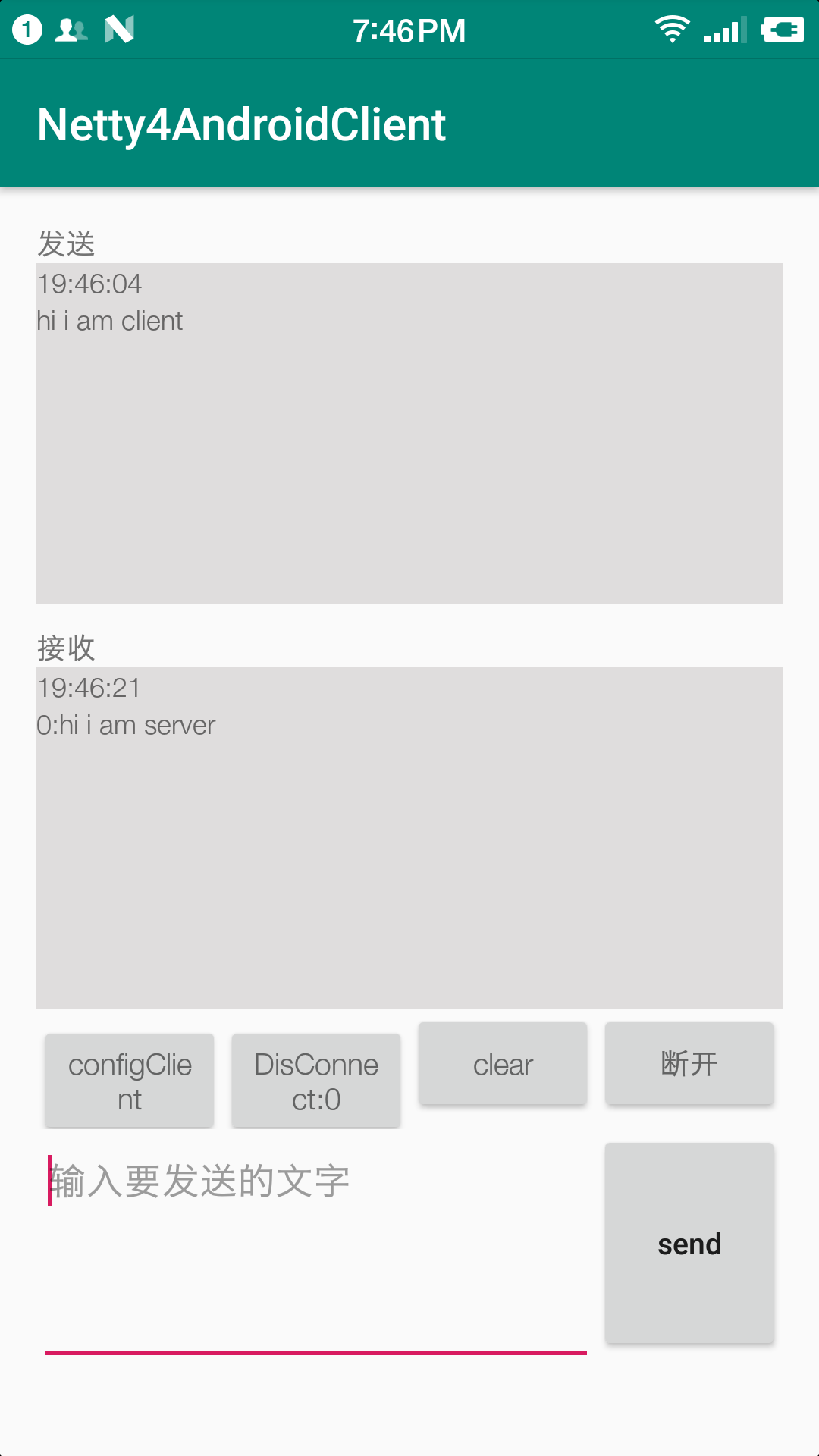

3.2 Socket 客户端

NettyTcpClient 通过 Builder 模式创建：

            mNettyTcpClient = NettyTcpClient.Builder()
                    .setHost(ip)                    //设置服务端地址
                    .setTcpPort(port)               //设置服务端端口号
                    .setMaxReconnectTimes(5)        //设置最大重连次数
                    .setReconnectIntervalTime(5)    //设置重连间隔时间。单位：秒
                    .setSendheartBeat(false)        //设置发送心跳
                    .setHeartBeatInterval(5)        //设置心跳间隔时间。单位：秒
                    .setHeartBeatData("I'm is HeartBeatData") //设置心跳数据，可以是String类型，也可以是byte[]，以后设置的为准
                    .setIndex(0)                    //设置客户端标识.(因为可能存在多个tcp连接)
                    .build()

            mNettyTcpClient.setListener(this@MainActivity) //设置TCP监听

启动、关闭客户端连接：

    private fun connect() {
        Log.d(TAG, "connect")
        if (!mNettyTcpClient.connectStatus) {
            mNettyTcpClient.connect()//连接服务器
        } else {
            mNettyTcpClient.disconnect()
        }
    }

NettyTcpClient 异步发送 TCP 消息到服务端：

mNettyTcpClient.sendMsgToServer(msg, object : MessageStateListener {
         override fun isSendSuccss(isSuccess: Boolean) {
                if (isSuccess) {

                   msgSend(msg)
               }
         }
})
