慕课网《SpringBoot+MyBatis搭建迷你小程序》学习总结

标签：
Java SpringBoot

慕课网《SpringBoot+MyBatis搭建迷你小程序》学习总结

第一章：课程介绍
1-1 课程介绍

学习收获

  • 学会从零搭建后端的SpringBoot + Mybatis框架
  • 微信小程序开发入门
  • 规范的代码编写
  • 实现后端的业务功能
  • 实现本地微信小程序的前端开发
  • 前端与后端的联调

技术要求

  • 基本的Java知识
  • 基本的前端开发知识Html、JS、CSS
  • 基本了解Spring、Mybatis知识
第二章：项目搭建
2-1 功能设计

功能列表

  • 新增区域
  • 删除区域
  • 修改区域
  • 查询区域
2-2 框架搭建

代码编写

1.创建名为small的maven工程pom如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.myimooc</groupId>
    <artifactId>small</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>small</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <version>3.0.1</version>
                <configuration>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <!-- 如果配置了拷贝java classpath下面的xml，项目中其他的配置文件应该手动配置复制过去 -->
            <!-- <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource> -->
        </resources>
    </build>

</project>

2.创建名为small的数据库初始化建表SQL如下

CREATE TABLE `tb_area` (
`area_id`  int(2) NOT NULL AUTO_INCREMENT ,
`area_name`  varchar(255) NOT NULL ,
`priority`  int(2) NOT NULL DEFAULT 0 ,
`create_time`  datetime NULL DEFAULT NULL,
`last_edit_time`  datetime NULL DEFAULT NULL,
PRIMARY KEY (`area_id`),
UNIQUE KEY `UK_AREA`(`area_name`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

3.编写application.properties

server.port=8080
server.servlet.context-path=/small

spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/small?useUnicode=true&characterEncoding=utf8&useSSL=false
spring.datasource.username=root
spring.datasource.password=root

4.编写SmallStart类

package com.myimooc.small;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ImportResource;

/**
 * <br>
 * 标题: 启动应用<br>
 * 描述: 慕课网《SpringBoot+MyBatis搭建迷你小程序》<br>
 * SpringBoot 整合 Mybatis 时，必须加 @MapperScan
 *
 * @author zc
 * @date 2018/04/16
 */
@SpringBootApplication
@MapperScan("com.myimooc.small.mapper")
public class SmallStart {

    public static void main(String[] args) {
        SpringApplication.run(SmallStart.class, args);
    }
}
第三章：项目开发
3-1 数据访问

代码编写

1.编写Area类

package com.myimooc.small.po;

import java.io.Serializable;
import java.util.Date;

/**
 * <br>
 * 标题: 区域表PO<br>
 * 描述: tb_area 表PO<br>
 *
 * @author zc
 * @date 2018/04/16
 */
public class Area implements Serializable {

    private static final long serialVersionUID = -3084550177471749048L;
    /**
     * 主键 区域 ID
     */
    private Integer areaId;
    /**
     * 区域名称
     */
    private String areaName;
    /**
     * 权重，越大越排前显示
     */
    private Integer priority;
    /**
     * 创建时间
     */
    private Date createTime;
    /**
     * 最后一次修改时间
     */
    private Date lastEditTime;

    @Override
    public String toString() {
        return "Area{" +
                "areaId=" + areaId +
                ", areaName='" + areaName + '\'' +
                ", priority=" + priority +
                ", createTime=" + createTime +
                ", lastEditTime=" + lastEditTime +
                '}';
    }

    public Integer getAreaId() {
        return areaId;
    }

    public void setAreaId(Integer areaId) {
        this.areaId = areaId;
    }

    public String getAreaName() {
        return areaName;
    }

    public void setAreaName(String areaName) {
        this.areaName = areaName;
    }

    public Integer getPriority() {
        return priority;
    }

    public void setPriority(Integer priority) {
        this.priority = priority;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public Date getLastEditTime() {
        return lastEditTime;
    }

    public void setLastEditTime(Date lastEditTime) {
        this.lastEditTime = lastEditTime;
    }
}

2.编写AreaMapper类

package com.myimooc.small.mapper;

import com.myimooc.small.po.Area;
import org.springframework.stereotype.Repository;

import java.util.List;

/**
 * <br>
 * 标题: 区域表 DAO<br>
 * 描述: tb_area 表 DAO<br>
 *
 * @author zc
 * @date 2018/04/17
 */
@Repository
public interface AreaMapper {
    /**
     * 批量查询
     *
     * @return 区域集合
     */
    List<Area> listAll();

    /**
     * 详情查询
     *
     * @param areaId 区域ID
     * @return 区域信息
     */
    Area findById(Integer areaId);

    /**
     * 创建区域
     *
     * @param area 区域 PO
     * @return 影响记录数
     */
    Integer create(Area area);

    /**
     * 修改区域
     *
     * @param area 区域 PO
     * @return 影响记录数
     */
    Integer update(Area area);

    /**
     * 删除区域
     *
     * @param areaId 区域ID
     * @return 影响记录数
     */
    Integer delete(Integer areaId);
}

3.编写AreaMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.myimooc.small.mapper.AreaMapper">

    <resultMap id="baseResultMap" type="com.myimooc.small.po.Area">
        <id column="area_id" property="areaId" jdbcType="INTEGER" javaType="Integer"/>

        <result column="area_name" property="areaName" jdbcType="VARCHAR" javaType="String"/>
        <result column="priority" property="priority" jdbcType="VARCHAR" javaType="Integer"/>
        <result column="create_time" property="createTime" jdbcType="TIMESTAMP" javaType="Date"/>
        <result column="last_edit_time" property="lastEditTime" jdbcType="TIMESTAMP" javaType="Date"/>
    </resultMap>

    <sql id="baseColumnAll">
        area_id,area_name,priority,create_time,last_edit_time
    </sql>

    <sql id="baseColumnInsert">
        area_name,priority,create_time,last_edit_time
    </sql>

    <insert id="create" useGeneratedKeys="true" keyProperty="areaId" keyColumn="area_id"
            parameterType="com.myimooc.small.po.Area">
        insert into tb_area(<include refid="baseColumnInsert"/>)
        values(#{areaName},#{priority},#{createTime},#{lastEditTime})
    </insert>

    <update id="update" parameterType="com.myimooc.small.po.Area">
        update tb_area
        <set>
            <if test="areaName != null">area_name=#{areaName},</if>
            <if test="priority != null">priority=#{priority},</if>
            <if test="lastEditTime != null">last_edit_time=#{lastEditTime}</if>
        </set>
        where area_id = #{areaId}
    </update>

    <delete id="delete">
        delete from tb_area where area_id = #{areaId}
    </delete>

    <select id="listAll" resultMap="baseResultMap">
        select
        <include refid="baseColumnAll"/>
        from tb_area order by priority desc
    </select>

    <select id="findById" resultMap="baseResultMap">
        select
        <include refid="baseColumnAll"/>
        from tb_area where area_id = #{areaId}
    </select>

</mapper>

4.编写AreaMapperTest类

package com.myimooc.small.mapper;

import com.myimooc.small.SmallApplicationTests;
import com.myimooc.small.po.Area;
import org.junit.Assert;
import org.junit.Ignore;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.Date;
import java.util.List;

import static org.junit.Assert.*;

/**
 * <br>
 * 标题: 区域表 DAO 单元测试类<br>
 * 描述: tb_area 表 DAO 单元测试类<br>
 *
 * @author zc
 * @date 2018/04/17
 */
public class AreaMapperTest extends SmallApplicationTests{

    @Autowired
    private AreaMapper areaMapper;

    @Test
    @Ignore
    public void listAll() {
        Assert.assertNotNull(areaMapper);
        List<Area> areas = areaMapper.listAll();
        assertEquals(2,areas.size());
    }

    @Test
    public void findById() {
        Area area = areaMapper.findById(1);
        assertEquals("东苑",area.getAreaName());
    }

    @Test
    @Ignore
    public void create() {
        Area area = new Area();
        area.setAreaName("南苑");
        area.setPriority(1);
        Integer num = areaMapper.create(area);
        assertEquals(new Integer(1),num);
    }

    @Test
    @Ignore
    public void update() {
        Area area = new Area();
        area.setAreaName("西苑");
        area.setAreaId(3);
        area.setLastEditTime(new Date());
        Integer num = areaMapper.update(area);
        assertEquals(new Integer(1),num);
    }

    @Test
    @Ignore
    public void delete() {
        Integer num = areaMapper.delete(3);
        assertEquals(new Integer(1),num);
    }
}
3-2 业务服务

代码编写

1.编写AreaService类

package com.myimooc.small.service;

import com.myimooc.small.po.Area;

import java.util.List;

/**
 * <br>
 * 标题: 区域业务服务<br>
 * 描述: 区域业务服务<br>
 *
 * @author zc
 * @date 2018/04/17
 */
public interface AreaService {

    /**
     * 批量查询
     *
     * @return 区域集合
     */
    List<Area> listAll();

    /**
     * 详情查询
     *
     * @param areaId 区域ID
     * @return 区域信息
     */
    Area findById(Integer areaId);

    /**
     * 创建区域
     *
     * @param area 区域 PO
     * @return 影响记录数
     */
    Boolean create(Area area);

    /**
     * 修改区域
     *
     * @param area 区域 PO
     * @return 影响记录数
     */
    Boolean update(Area area);

    /**
     * 删除区域
     *
     * @param areaId 区域ID
     * @return 影响记录数
     */
    Boolean delete(Integer areaId);

}

2.编写AreaServiceImpl类

package com.myimooc.small.service.impl;

import com.myimooc.small.mapper.AreaMapper;
import com.myimooc.small.po.Area;
import com.myimooc.small.service.AreaService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.Date;
import java.util.List;

/**
 * <br>
 * 标题: 区域业务服务实现<br>
 * 描述: 区域业务服务<br>
 *
 * @author zc
 * @date 2018/04/17
 */
@Service
public class AreaServiceImpl implements AreaService {

    @Autowired
    private AreaMapper areaMapper;

    @Override
    public List<Area> listAll() {
        return areaMapper.listAll();
    }

    @Override
    public Area findById(Integer areaId) {
        return areaMapper.findById(areaId);
    }

    @Transactional(rollbackFor = {Exception.class})
    @Override
    public Boolean create(Area area) {
        if (area != null) {
            return areaMapper.create(area) == 1;
        }
        throw new RuntimeException("区域信息不能为空！");
    }

    @Transactional(rollbackFor = {Exception.class})
    @Override
    public Boolean update(Area area) {
        if (area != null) {
            area.setLastEditTime(new Date());
            return areaMapper.update(area) == 1;
        }
        throw new RuntimeException("区域信息不能为空！");
    }

    @Transactional(rollbackFor = {Exception.class})
    @Override
    public Boolean delete(Integer areaId) {
        if (areaId > 0) {
            return areaMapper.delete(areaId) == 1;
        }
        throw new RuntimeException("区域ID不能为空！");
    }
}

3.编写BaseResponse类

package com.myimooc.small.vo;

import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;

/**
 * <br>
 * 标题: Http请求响应基类<br>
 * 描述: 响应请求是否处理成功<br>
 *
 * @author zc
 * @date 2018/04/17
 */
public class BaseResponse implements Serializable {

    private static final long serialVersionUID = -9091805407931758357L;
    /**
     * 状态：true 成功；false 失败；
     */
    private Boolean success;
    /**
     * 错误消息
     */
    private String errMsg;
    /**
     * 响应数据
     */
    private Map<String,Object> data;

    public void putData(String key,Object value){
        this.initData();
        this.data.put(key,value);
    }

    public Object getData(String key){
        this.initData();
        return this.data.get(key);
    }

    private void initData(){
        if (data == null){
            data = new HashMap<>(16);
        }
    }

    public Map<String, Object> getData() {
        return data;
    }

    public Boolean getSuccess() {
        return success;
    }

    public void setSuccess(Boolean success) {
        this.success = success;
    }

    public String getErrMsg() {
        return errMsg;
    }

    public void setErrMsg(String errMsg) {
        this.errMsg = errMsg;
    }
}

4.编写AreaController类

package com.myimooc.small.controller;

import com.myimooc.small.po.Area;
import com.myimooc.small.service.AreaService;
import com.myimooc.small.vo.BaseResponse;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * <br>
 * 标题: 区域控制器<br>
 * 描述: 控制器类<br>
 *
 * @author zc
 * @date 2018/04/17
 */
@RestController
@RequestMapping("/superadmin/area")
public class AreaController {

    @Autowired
    private AreaService areaService;

    @GetMapping("/list")
    public BaseResponse list(){
        BaseResponse response = new BaseResponse();
        response.setSuccess(true);
        response.putData("areaList",this.areaService.listAll());
        return response;
    }

    @GetMapping("/find")
    public BaseResponse findById(Integer areaId){
        BaseResponse response = new BaseResponse();
        response.setSuccess(true);
        response.putData("area",this.areaService.findById(areaId));
        return response;
    }

    @PostMapping("/create")
    public BaseResponse create(@RequestBody Area area){
        BaseResponse response = new BaseResponse();
        response.setSuccess(this.areaService.create(area));
        return response;
    }

    @PostMapping("/update")
    public BaseResponse update(@RequestBody Area area){
        BaseResponse response = new BaseResponse();
        response.setSuccess(this.areaService.update(area));
        return response;
    }

    @GetMapping("/remove")
    public BaseResponse remove(Integer areaId){
        BaseResponse response = new BaseResponse();
        response.setSuccess(this.areaService.delete(areaId));
        return response;
    }
}

5.编写GlobalExceptionHandler类

package com.myimooc.small.handler;

import com.myimooc.small.vo.BaseResponse;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;

import javax.servlet.http.HttpServletRequest;

/**
 * <br>
 * 标题: 全局异常处理类<br>
 * 描述: 统一处理异常<br>
 *
 * @author zc
 * @date 2018/04/17
 */
@ControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(Exception.class)
    @ResponseBody
    public BaseResponse exceptionHandler(HttpServletRequest request, Exception e){
        e.printStackTrace();
        BaseResponse response = new BaseResponse();
        response.setSuccess(false);
        response.setErrMsg(e.getMessage());
        return response;
    }
}
第四章：项目联调
4-1 小程序端

小程序开发中文档地址：https://developers.weixin.qq.com/miniprogram/dev/

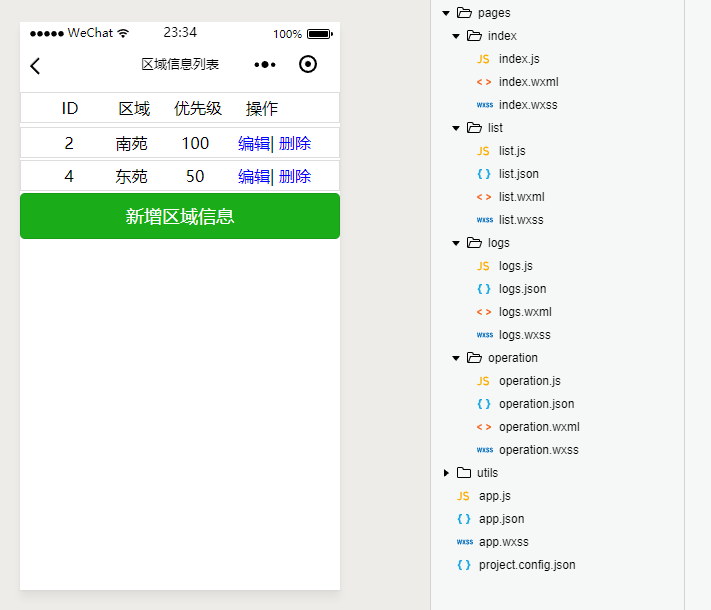

由篇幅限制，小程序端源码请到github地址查看，完成后的结构如下

图片描述

第五章：课程总结
5-1 课程总结

课程总结

  • 学会从零搭建后端的SpringBoot + Mybatis框架
  • 微信小程序开发入门
  • 实现后端的业务功能
  • 实现本地微信小程序的前端开发
  • 前端与后端的联调
点击查看更多内容
发表于 2018.04.18 00:16， 共 4414 人浏览

本文原创发布于慕课网 ，转载请注明出处，谢谢合作

举报
7人点赞

若觉得本文不错，就分享一下吧！

评论

作者其他优质文章

正在加载中

妙空

JAVA开发工程师
手记
篇
粉丝
138
获赞与收藏
532

关注作者，订阅最新文章

相关文章推荐

阅读免费教程

感谢您的支持，我会继续努力的～
扫码打赏，你说多少就多少
赞赏金额会直接到老师账户
支付方式
打开微信扫一扫，即可进行扫码打赏哦
今天注册有机会得

100积分直接送

付费专栏免费学

大额优惠券免费领

立即参与 放弃机会
意见反馈 帮助中心 APP下载
官方微信

举报

0/150
提交
取消
