React源码解析-首次渲染（纯DOM元素）II

上一篇文章中，介绍了顶层对象ReactCompositeComponent[T]是如何构造的，接下来我们看看 batchedMountComponentIntoNode 做了什么事情。

本文将要讲解的调用栈是下面这个样子的：

|=ReactMount.render(nextElement, container, callback)     ___
|=ReactMount._renderSubtreeIntoContainer()                 |
  |-ReactMount._renderNewRootComponent()                   |
    |-instantiateReactComponent()                          |
    |~batchedMountComponentIntoNode()                  upper half
      |~mountComponentIntoNode()                       (平台无关)
        |-ReactReconciler.mountComponent()                 |
          |-ReactCompositeComponent.mountComponent()       |
          |-ReactCompositeComponent.performInitialMount()  |
            |-instantiateReactComponent()                 _|_
            |-ReactDOMComponent.mountComponent()       lower half
        |-_mountImageIntoNode()                      (HTML DOM 相关)
                                                          _|_

如果看源码，我们会留意到很多transaction相关的代码，我们暂时先将其忽略，会在后续的文章中进行讲解。暂时可以理解为调用transaction.perform时，实际上就是对第一个参数进行函数调用。跳过一些模版代码后，实际上做事情的是 mountComponentIntoNode 这个方法。

// 文件位置：src/renderers/dom/client/ReactMount.jsfunction mountComponentIntoNode(
    wrapperInstance,    // ReactCompositeComponent[T]
    container,          // document.getElementById("root")    transaction,    shouldReuseMarkup,    context) {
    ...

    var markup = ReactReconciler.mountComponent(
        wrapperInstance,
        transaction,        null,
        ReactDOMContainerInfo(wrapperInstance, container),
        context,        0 /* parentDebugID */
    );

    ...

    ReactMount._mountImageIntoNode(
        markup,
        container,
        wrapperInstance,
        shouldReuseMarkup,
        transaction
    );
}

ReactReconciler.mountComponent 用于创建 DOM 元素，而 ReactMount._mountImageIntoNode 则是将刚创建的 DOM 元素挂载到页面。ReactReconciler.mountComponent 会调用 ReactCompositeComponent[T]的 mountComponent 方法。在看 mountComponent 方法前，还需要先准备好 hostContainerInfo，由 ReactDOMContainerInfo 生成：

// 文件位置：src/renderers/shared/stack/reconciler/ReactContainerInfo.jsfunction ReactDOMContainerInfo(
    topLevelWrapper,     // ReactCompositeComponent[T]
    node                 // document.getElementById("root")
) {    var info = {        _topLevelWrapper: topLevelWrapper,        _idCounter: 1,        _ownerDocument: node ?
            node.nodeType === DOC_NODE_TYPE ? node : node.ownerDocument : null,        _node: node,        _tag: node ? node.nodeName.toLowerCase() : null,        _namespaceURI: node ? node.namespaceURI : null,
    };

    ...

    return info;
}

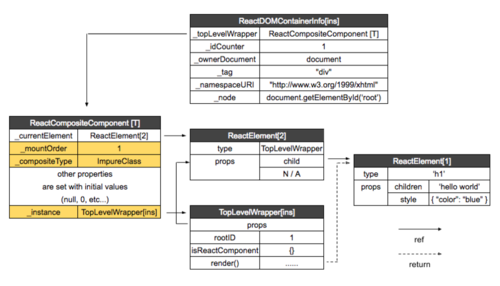

现在各实例间的关系是这样的：

再继续看 mountComponent 方法：

// 文件位置：src/renderers/shared/stack/reconciler/ReactCompositeComponent.jsmountComponent: function (
    transaction,
    hostParent,
    hostContainerInfo,
    context) {
    ...    // this._currentElement 为ReactElement[2](TopLevelWrapper)
    var publicProps = this._currentElement.props;    var publicContext = this._processContext(context);    // TopLevelWrapper
    var Component = this._currentElement.type;

    ...    // Initialize the public class
    var doConstruct = shouldConstruct(Component);
    // 生成TopLevelWrapper 实例
    var inst = this._constructComponent(
        doConstruct,
        publicProps,
        publicContext,
        updateQueue
    );

    ...

    var markup;

    ...

    markup = this.performInitialMount(renderedElement,
            hostParent, hostContainerInfo, transaction, context

    ...

    return markup;
},performInitialMount: function (renderedElement, hostParent,
    hostContainerInfo, transaction, context) {
    // TopLevelWrapper 实例
    var inst = this._instance;

    ...
    // If not a stateless component, we now render
    if (renderedElement === undefined) {        // 返回值为 ReactElement[1]
        renderedElement = this._renderValidatedComponent();
    }    // 返回 ReactNodeTypes.HOST
    var nodeType = ReactNodeTypes.getType(renderedElement);
    this._renderedNodeType = nodeType;
    // instantiateReactComponent.js
    var child = this._instantiateReactComponent(
        renderedElement,
        nodeType !== ReactNodeTypes.EMPTY /* shouldHaveDebugID */
    );    this._renderedComponent = child;    var markup = ReactReconciler.mountComponent(
        child,
        transaction,
        hostParent,
        hostContainerInfo,        this._processChildContext(context),
        debugID
    );

    ...

    return markup;
},

当运行到var child = this._instantiateReactComponent时，就会调用上篇文章说到的instantiateReactComponent文件：

// 文件位置：src/renderers/shared/stack/reconciler/instantiateReactComponent.jsfunction instantiateReactComponent(node, shouldHaveDebugID) {    var instance;

    ...

    } else if (typeof node === 'object') {
        ...        // element.type 为 ‘h1’
        if (typeof element.type === 'string') {
            instance = ReactHostComponent.createInternalComponent(element);
        }

    return instance;
}

ReactDom 会在执行的时候，执行ReactDefaultInjection.inject()将 ReactDOMComponent 注入到 ReactHostComponent 中，ReactHostComponent.createInternalComponent 最终会调用 ReactDOMComponent：

// 文件位置：src/renderers/dom/shared/ReactDomComponent.jsfunction ReactDOMComponent(element) {    // h1
    var tag = element.type;

    validateDangerousTag(tag);
    // ReactElement[1]
    this._currentElement = element;
    this._tag = tag.toLowerCase();    this._namespaceURI = null;    this._renderedChildren = null;    this._previousStyle = null;    this._previousStyleCopy = null;    this._hostNode = null;    this._hostParent = null;    this._rootNodeID = 0;    this._domID = 0;    this._hostContainerInfo = null;    this._wrapperState = null;    this._topLevelWrapper = null;    this._flags = 0;
}

我们将返回的实例命名为 ReactDOMComponent[ins]。

ReactReconciler.mountComponent 会调用 ReactDomComponent 的 mountComponent 方法，这就会涉及到 HTML DOM 相关的内容，我们在下一篇进行讲解。

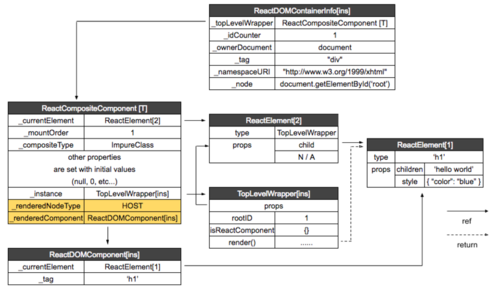

现在我们来看一下各实例间的关系：

目前为止的调用栈：

|=ReactMount.render(nextElement, container, callback)     ___
|=ReactMount._renderSubtreeIntoContainer()                 |
  |-ReactMount._renderNewRootComponent()                   |
    |-instantiateReactComponent()                          |
    |~batchedMountComponentIntoNode()                  upper half
      |~mountComponentIntoNode()                       (平台无关)
        |-ReactReconciler.mountComponent()                 |
          |-ReactCompositeComponent.mountComponent()       |
          |-ReactCompositeComponent.performInitialMount()  |
            |-instantiateReactComponent()                 _|_
            |-ReactDOMComponent.mountComponent()       lower half
        |-_mountImageIntoNode()                 (HTML DOM 相关下一篇讲解)
                                                          _|_
