Spring系列学习（1）---------- IOC源码分析

IOC（控制反转，又叫依赖注入）是Spring框架的一个重要功能。所谓的控制反转，指的是依赖对象的创建被反转了。在传统的代码中，获取对象是通过在代码中通过new关键字来进行。在Spring框架里边，我们不需要去手动的创建对象，而是IOC容器帮我们去进行对象的创建。当我们需要某个对象时候，直接调用IOC容器的接口来获取即可。那么使用IOC有什么好处呢？答案就是解耦。通过IOC，解除了对象与对象之间的依赖，取而代之的是，与对象产生依赖关系的是IOC容器，IOC容器对所有的对象进行管理，不再需要用户进行关心。

如果没有看IOC的源码实现，仅凭猜测，其内部逻辑实现的应该是XML解析，之后通过反射进行对象的创建等内容。阅读源码之后，发现与所想的逻辑大体符合，但是源码实现中的逻辑脉络确是非常的复杂，封装层次非常多。

在IOC实现逻辑中，主要分成两个部分，分别是容器的初始化和对象的对象获取。以下详细讨论这两个过程的实现。讨论之前，有必要先对Spring中的两个基础类进行一些介绍。

BeanFactory作为IOC容器系统结构中最上层的接口，定义了容器的基本规范，不关心其中的Bean的加载过程。

public interface BeanFactory {

    /**
     * Used to dereference a {@link FactoryBean} instance and distinguish it from
     * beans <i>created</i> by the FactoryBean. For example, if the bean named
     * {@code myJndiObject} is a FactoryBean, getting {@code &myJndiObject}
     * will return the factory, not the instance returned by the factory.
     */
    String FACTORY_BEAN_PREFIX = "&";
    Object getBean(String name) throws BeansException;
    <T> T getBean(String name, Class<T> requiredType) throws BeansException;
    <T> T getBean(Class<T> requiredType) throws BeansException;
    Object getBean(String name, Object... args) throws BeansException;
    <T> T getBean(Class<T> requiredType, Object... args) throws BeansException;
    boolean containsBean(String name);
    boolean isSingleton(String name) throws NoSuchBeanDefinitionException;
    boolean isPrototype(String name) throws NoSuchBeanDefinitionException;
    boolean isTypeMatch(String name, Class<?> targetType) throws NoSuchBeanDefinitionException;
    Class<?> getType(String name) throws NoSuchBeanDefinitionException;
    String[] getAliases(String name);
}

在IOC中，BeanFactory存在多个子接口和对应的实现类，分别对应不同类型的Bean。

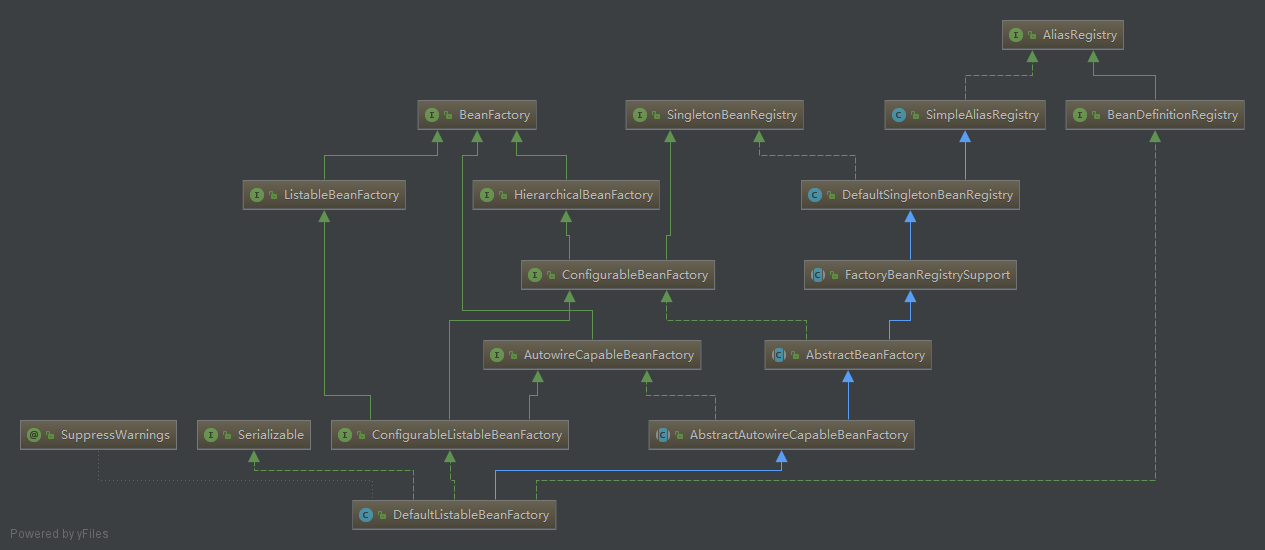

系统中默认实现类是DefaultListableBeanFactory，该类实现了BeanFactory容器体系结构中的所有接口。从宏观看来，起于BeanFactory，终于DefaultListableBeanFactory。

其实在DefaultListableBeanFactory的下层，还有XmlBeanFactory类，只是目前已经不推荐使用了。
@Deprecated @SuppressWarnings({"serial", "all"}) public class XmlBeanFactory extends DefaultListableBeanFactory {

BeanFactory只关心容器的行为，而不关心其中的Bean的具体创建过程。Bean的创建一般是由ApplicationContext进行，其解析XML并创建对应的Bean。

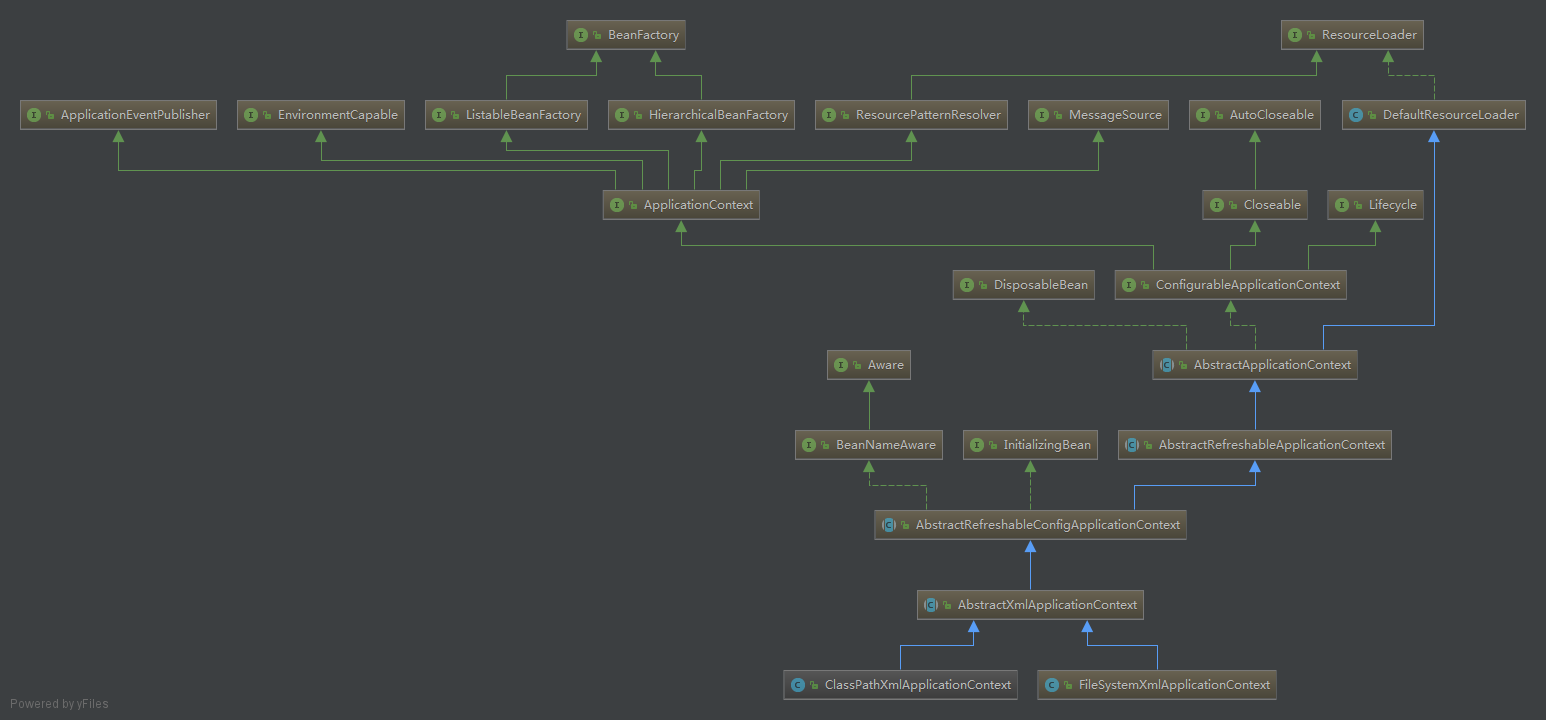

ApplicationContext为应用上下文，其实是BeanFactory的一个子接口。在Spring中，会把两者都叫做容器，但是是存在一定的差异的。BeanFactory主要是面向Spring内部的，作为基础接口；而ApplicationContext一般是面向程序开发者的。所以对于很多的Spring程序，可以看到在初始化的时候使用的是ApplicationContext。另外一个区别就是ApplicationContext的功能更加的丰富。

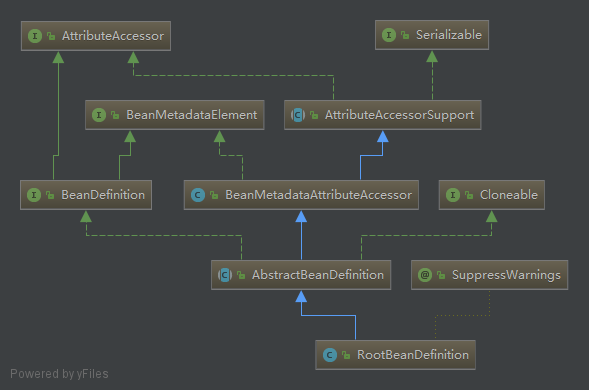

BeanDefinition是IOC容器对于Bean的描述形式，代码中使用到的实现类是RootBeanDefinition。其代码和类继承体系如下：

public interface BeanDefinition extends AttributeAccessor, BeanMetadataElement {
    String SCOPE_SINGLETON = ConfigurableBeanFactory.SCOPE_SINGLETON;
    String SCOPE_PROTOTYPE = ConfigurableBeanFactory.SCOPE_PROTOTYPE;
    int ROLE_APPLICATION = 0;
    int ROLE_SUPPORT = 1;
    int ROLE_INFRASTRUCTURE = 2;
    String getParentName();
    void setParentName(String parentName);
    String getBeanClassName();
    void setBeanClassName(String beanClassName);
    String getFactoryBeanName();
    void setFactoryBeanName(String factoryBeanName);
    String getFactoryMethodName();
    void setFactoryMethodName(String factoryMethodName);
    String getScope();
    void setScope(String scope);
    boolean isLazyInit();
    void setLazyInit(boolean lazyInit);
    String[] getDependsOn();
    void setDependsOn(String... dependsOn);
    boolean isAutowireCandidate();
    void setAutowireCandidate(boolean autowireCandidate);
    boolean isPrimary();
    void setPrimary(boolean primary);
    ConstructorArgumentValues getConstructorArgumentValues();
    MutablePropertyValues getPropertyValues();
    boolean isSingleton();
    boolean isPrototype();
    boolean isAbstract();
    int getRole();
    String getDescription();
    String getResourceDescription();
    BeanDefinition getOriginatingBeanDefinition();
}

BeanDefinitionReader是IOC中XML解析器的规范，对Spring中的xml配置文件进行解析

public interface BeanDefinitionReader {
    BeanDefinitionRegistry getRegistry();

    ResourceLoader getResourceLoader();

    ClassLoader getBeanClassLoader();

    BeanNameGenerator getBeanNameGenerator();

    int loadBeanDefinitions(Resource var1) throws BeanDefinitionStoreException;

    int loadBeanDefinitions(Resource... var1) throws BeanDefinitionStoreException;

    int loadBeanDefinitions(String var1) throws BeanDefinitionStoreException;

    int loadBeanDefinitions(String... var1) throws BeanDefinitionStoreException;
}

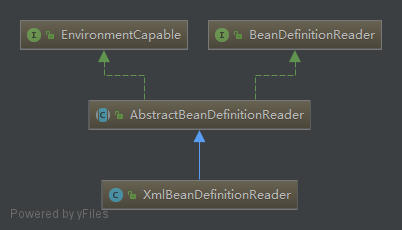

其继承体系如下：

由图可以看出，其实现类为XmlBeanDefinitionReader。

IOC的容器初始化主要分为4步：准备，解析XML，转换到Bean，注册Bean。

在程序中根据xml路径字符串创建ClassPathXmlApplicationContext对象，其构造方法最终会使用以下方法进行初始化。

    public ClassPathXmlApplicationContext(String[] configLocations, boolean refresh, ApplicationContext parent) throws BeansException {
        super(parent);
        this.setConfigLocations(configLocations);
        if (refresh) {
            this.refresh();
        }
    }

在refresh方法中，进行的是IOC容器的初始化过程。

    public void refresh() throws BeansException, IllegalStateException {
        Object var1 = this.startupShutdownMonitor;
        synchronized(this.startupShutdownMonitor) {
            this.prepareRefresh();
            ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
            this.prepareBeanFactory(beanFactory);

            try {
                this.postProcessBeanFactory(beanFactory);
                this.invokeBeanFactoryPostProcessors(beanFactory);
                this.registerBeanPostProcessors(beanFactory);
                this.initMessageSource();
                this.initApplicationEventMulticaster();
                this.onRefresh();
                this.registerListeners();
                this.finishBeanFactoryInitialization(beanFactory);
                this.finishRefresh();
            } catch (BeansException var5) {
                this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt", var5);
                this.destroyBeans();
                this.cancelRefresh(var5);
                throw var5;
            }
        }
    }

1) 检测当前BeanFactory是否存在，如果存在则销毁单例实例，关闭BeanFactory。之后创建新的BeanFactory。

    protected final void refreshBeanFactory() throws BeansException {
        if (this.hasBeanFactory()) {
            this.destroyBeans();
            this.closeBeanFactory();
        }

        try {
            DefaultListableBeanFactory beanFactory = this.createBeanFactory();
            beanFactory.setSerializationId(this.getId());
            this.customizeBeanFactory(beanFactory);
            this.loadBeanDefinitions(beanFactory);
            Object var2 = this.beanFactoryMonitor;
            synchronized(this.beanFactoryMonitor) {
                this.beanFactory = beanFactory;
            }
        } catch (IOException var5) {
            throw new ApplicationContextException("I/O error parsing bean definition source for " + this.getDisplayName(), var5);
        }
    }

创建BeanFactory，这里可以看到，实例化的是DefaultListableBeanFactory对象

protected DefaultListableBeanFactory createBeanFactory() {
return new DefaultListableBeanFactory(this.getInternalParentBeanFactory());
}

2）创建XmlBeanDefinitionReader

XmlBeanDefinitionReader用于对XML文件进行解析。解析包括后续的动作，在loadBeanDefinitions函数中进行。

    protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
        XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
        beanDefinitionReader.setEnvironment(this.getEnvironment());
        beanDefinitionReader.setResourceLoader(this);
        beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));
        this.initBeanDefinitionReader(beanDefinitionReader);
        this.loadBeanDefinitions(beanDefinitionReader);
    }

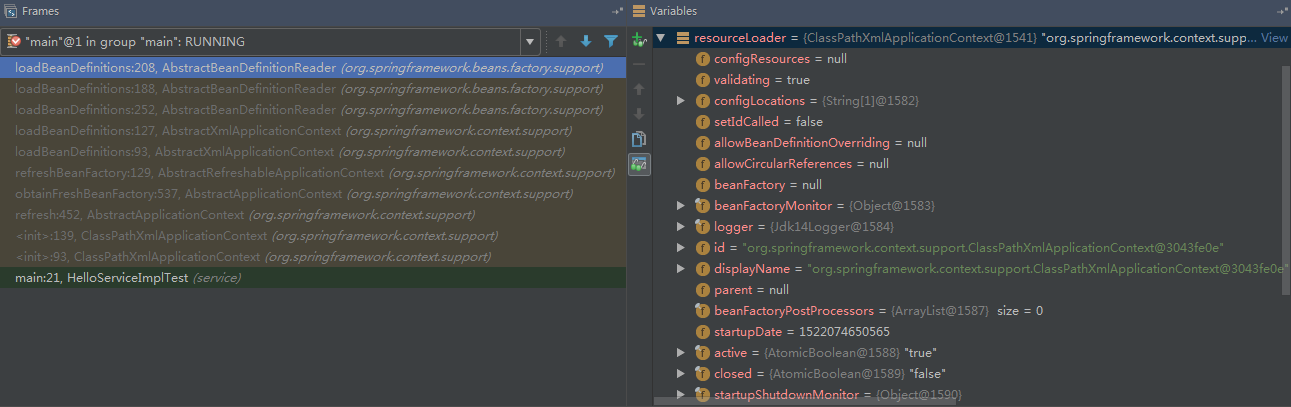

在下方代码中，resourceLoader即为最初创建的ClassPathXmlApplicationContext对象，从前文的继承体系可以知道，该类型继承自ResourcePatternResolver接口。在其逻辑中，会开始对资源文件进行解析和处理loadBeanDefinitions(resources)。

    public int loadBeanDefinitions(String location, Set<Resource> actualResources) throws BeanDefinitionStoreException {
        ResourceLoader resourceLoader = getResourceLoader();
        if (resourceLoader == null) {
            throw new BeanDefinitionStoreException(
                    "Cannot import bean definitions from location [" + location + "]: no ResourceLoader available");
        }

        if (resourceLoader instanceof ResourcePatternResolver) {
            // Resource pattern matching available.
            try {
                Resource[] resources = ((ResourcePatternResolver) resourceLoader).getResources(location);
                int loadCount = loadBeanDefinitions(resources);
                if (actualResources != null) {
                    for (Resource resource : resources) {
                        actualResources.add(resource);
                    }
                }
                if (logger.isDebugEnabled()) {
                    logger.debug("Loaded " + loadCount + " bean definitions from location pattern [" + location + "]");
                }
                return loadCount;
            }
            catch (IOException ex) {
                throw new BeanDefinitionStoreException(
                        "Could not resolve bean definition resource pattern [" + location + "]", ex);
            }
        }
        else {
                 ....
        }
    }

开始处理资源文件，创建并处理输入流。

    public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
        ...
        try {
            InputStream inputStream = encodedResource.getResource().getInputStream();
            try {
                InputSource inputSource = new InputSource(inputStream);
                if (encodedResource.getEncoding() != null) {
                    inputSource.setEncoding(encodedResource.getEncoding());
                }
                return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
            }
            finally {
                inputStream.close();
            }
        }
        ...
    }

创建文档解析器工程和解析器，处理输入流

    public Document loadDocument(InputSource inputSource, EntityResolver entityResolver,
            ErrorHandler errorHandler, int validationMode, boolean namespaceAware) throws Exception {

        DocumentBuilderFactory factory = createDocumentBuilderFactory(validationMode, namespaceAware);
        if (logger.isDebugEnabled()) {
            logger.debug("Using JAXP provider [" + factory.getClass().getName() + "]");
        }
        DocumentBuilder builder = createDocumentBuilder(factory, entityResolver, errorHandler);
        return builder.parse(inputSource);
    }

将输入流转换成为Document返回。

    public Document parse(InputSource is) throws SAXException, IOException {
        if (is == null) {
            throw new IllegalArgumentException(
                DOMMessageFormatter.formatMessage(DOMMessageFormatter.DOM_DOMAIN,
                "jaxp-null-input-source", null));
        }
        if (fSchemaValidator != null) {
            if (fSchemaValidationManager != null) {
                fSchemaValidationManager.reset();
                fUnparsedEntityHandler.reset();
            }
            resetSchemaValidator();
        }
        domParser.parse(is);
        Document doc = domParser.getDocument();
        domParser.dropDocumentReferences();
        return doc;
    }

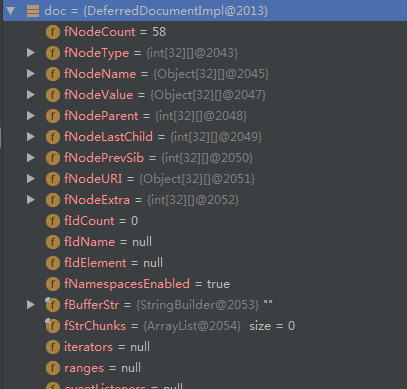

到此，xml文件的解析部分结束，最终返回的对象是Document。

在registerBeanDefinitions方法中，创建BeanDefinitionDocumentReader对象，开始进行从XML元素到Bean的解析。

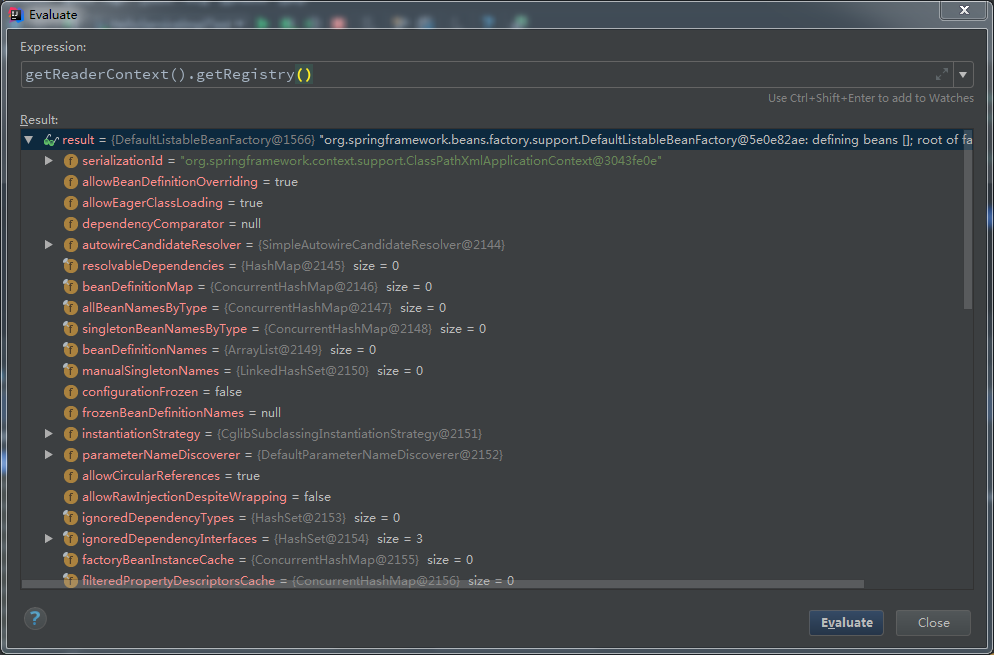

    public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
        BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
        documentReader.setEnvironment(getEnvironment());
        int countBefore = getRegistry().getBeanDefinitionCount();
        documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
        return getRegistry().getBeanDefinitionCount() - countBefore;
    }

遍历处理所有的xml根节点的子节点。

    protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
        if (delegate.isDefaultNamespace(root)) {
            NodeList nl = root.getChildNodes();
            for (int i = 0; i < nl.getLength(); i++) {
                Node node = nl.item(i);
                if (node instanceof Element) {
                    Element ele = (Element) node;
                    // 如果使用Spring默认的命名空间
                    if (delegate.isDefaultNamespace(ele)) {
                        parseDefaultElement(ele, delegate);
                    }
                    else {
                        delegate.parseCustomElement(ele);
                    }
                }
            }
        }
        else {
            delegate.parseCustomElement(root);
        }
    }

根据不同的类型，调用不同的XML元素处理逻辑

    private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
        if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
            importBeanDefinitionResource(ele);
        }
        else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
            processAliasRegistration(ele);
        }
        else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
            processBeanDefinition(ele, delegate);
        }
        else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
            // recurse
            doRegisterBeanDefinitions(ele);
        }
    }

我们主要关注Bean类型的处理。

    protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
        BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
        if (bdHolder != null) {
            bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
            try {
                // Register the final decorated instance.
                BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
            }
            catch (BeanDefinitionStoreException ex) {
                getReaderContext().error("Failed to register bean definition with name '" +
                        bdHolder.getBeanName() + "'", ele, ex);
            }
            // Send registration event.
            getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
        }
    }

BeanDefinitionHolder是对BeanDefinition进行的一次封装。

public class BeanDefinitionHolder implements BeanMetadataElement { private final BeanDefinition beanDefinition; private final String beanName; private final String[] aliases; ... }

这里多啰嗦一句哈，看到这下边这行代码，大家有什么感觉没？尤其是decorate这个单词。
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
其实这里是一个装饰器的设计模式，BeanDefinitionHolder依赖了BeanDefinition，并且两者均实现了BeanMetadataElement接口。有兴趣的朋友可以翻一下BeanDefinitionHolder的源码，看一下这个装饰器对哪些方法进行了加强。

从上边的代码可以看到，在delegate.parseBeanDefinitionElement(ele)方法中，实现了xml节点到BeanDefinitionHolder的转换，其内部逻辑如下：

    public AbstractBeanDefinition parseBeanDefinitionElement(Element ele, String beanName, BeanDefinition containingBean) {
        this.parseState.push(new BeanEntry(beanName));
        String className = null;
        if (ele.hasAttribute("class")) {
            className = ele.getAttribute("class").trim();
        }

        try {
            String parent = null;
            if (ele.hasAttribute("parent")) {
                parent = ele.getAttribute("parent");
            }

            AbstractBeanDefinition bd = this.createBeanDefinition(className, parent);
            this.parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
            bd.setDescription(DomUtils.getChildElementValueByTagName(ele, "description"));
            this.parseMetaElements(ele, bd);
            this.parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
            this.parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
            this.parseConstructorArgElements(ele, bd);
            this.parsePropertyElements(ele, bd);
            this.parseQualifierElements(ele, bd);
            bd.setResource(this.readerContext.getResource());
            bd.setSource(this.extractSource(ele));
            AbstractBeanDefinition var7 = bd;
            return var7;
        } catch (ClassNotFoundException var13) {
            this.error("Bean class [" + className + "] not found", ele, var13);
        } catch (NoClassDefFoundError var14) {
            this.error("Class that bean class [" + className + "] depends on not found", ele, var14);
        } catch (Throwable var15) {
            this.error("Unexpected failure during bean definition parsing", ele, var15);
        } finally {
            this.parseState.pop();
        }

        return null;
    }

创建BeanDefinition对象。

    public AbstractBeanDefinition parseBeanDefinitionElement(Element ele, String beanName, BeanDefinition containingBean) {
        this.parseState.push(new BeanEntry(beanName));
        String className = null;
        if (ele.hasAttribute("class")) {
            className = ele.getAttribute("class").trim();
        }

        try {
            String parent = null;
            if (ele.hasAttribute("parent")) {
                parent = ele.getAttribute("parent");
            }

            AbstractBeanDefinition bd = this.createBeanDefinition(className, parent);
            this.parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
            bd.setDescription(DomUtils.getChildElementValueByTagName(ele, "description"));
            this.parseMetaElements(ele, bd);
            this.parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
            this.parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
            this.parseConstructorArgElements(ele, bd);
            this.parsePropertyElements(ele, bd);
            this.parseQualifierElements(ele, bd);
            bd.setResource(this.readerContext.getResource());
            bd.setSource(this.extractSource(ele));
            AbstractBeanDefinition var7 = bd;
            return var7;
        } catch (ClassNotFoundException var13) {
            this.error("Bean class [" + className + "] not found", ele, var13);
        } catch (NoClassDefFoundError var14) {
            this.error("Class that bean class [" + className + "] depends on not found", ele, var14);
        } catch (Throwable var15) {
            this.error("Unexpected failure during bean definition parsing", ele, var15);
        } finally {
            this.parseState.pop();
        }

        return null;
    }

这里判断如果classLoader非空，则通过反射创建对应名称的Class对象，置于GenericBeanDefinition中。

    public static AbstractBeanDefinition createBeanDefinition(String parentName, String className, ClassLoader classLoader) throws ClassNotFoundException {
        GenericBeanDefinition bd = new GenericBeanDefinition();
        bd.setParentName(parentName);
        if (className != null) {
            if (classLoader != null) {
                bd.setBeanClass(ClassUtils.forName(className, classLoader));
            } else {
                bd.setBeanClassName(className);
            }
        }

        return bd;
    }

到此，程序完成了从xml节点到BeanDefinition的转换，最终封装成了BeanDefinitionHolder对象。

registerBeanDefinition方法

紧接上一步，封装返回了BeanDefinitionHolder对象之后，就会进行Bean的注册。这里的注册，就是将BeanDefinition注册到BeanFactory中。

完成该过程的代码是BeanDefinitionReaderUtils.registerBeanDefinition方法。在调用处，使用了2个形参，分别是bdHolder和this.getReaderContext().getRegistry()。这里的registry，即是我们之前定义的BeanFactory对象。

最终进行实际注册的，是DefaultListableBeanFactory类的registerBeanDefinition方法。其实就是将BeanDefinition放入到名为beanDefinitionMap的ConcurrentHashMap结构中。

    public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition) throws BeanDefinitionStoreException {
        Assert.hasText(beanName, "Bean name must not be empty");
        Assert.notNull(beanDefinition, "BeanDefinition must not be null");
        if (beanDefinition instanceof AbstractBeanDefinition) {
            try {
                ((AbstractBeanDefinition)beanDefinition).validate();
            } catch (BeanDefinitionValidationException var7) {
                throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName, "Validation of bean definition failed", var7);
            }
        }

        Map var3 = this.beanDefinitionMap;
        synchronized(this.beanDefinitionMap) {
            BeanDefinition oldBeanDefinition = (BeanDefinition)this.beanDefinitionMap.get(beanName);
            if (oldBeanDefinition != null) {
                if (!this.allowBeanDefinitionOverriding) {
                    throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName, "Cannot register bean definition [" + beanDefinition + "] for bean '" + beanName + "': There is already [" + oldBeanDefinition + "] bound.");
                }

                if (oldBeanDefinition.getRole() < beanDefinition.getRole()) {
                    if (this.logger.isWarnEnabled()) {
                        this.logger.warn("Overriding user-defined bean definition for bean '" + beanName + " with a framework-generated bean definition ': replacing [" + oldBeanDefinition + "] with [" + beanDefinition + "]");
                    }
                } else if (this.logger.isInfoEnabled()) {
                    this.logger.info("Overriding bean definition for bean '" + beanName + "': replacing [" + oldBeanDefinition + "] with [" + beanDefinition + "]");
                }
            } else {
                this.beanDefinitionNames.add(beanName);
                this.frozenBeanDefinitionNames = null;
            }

            this.beanDefinitionMap.put(beanName, beanDefinition);
        }

        this.resetBeanDefinition(beanName);
    }

至此，Bean的注册过程结束。Bean的注册过程，并没有真正的生成对象的实例，而是保存了所有BeanDefinition。

在下一篇文章中，会重点研究依赖注入的过程。
